Pixel pitch: P1.25, P1.56, P1.86

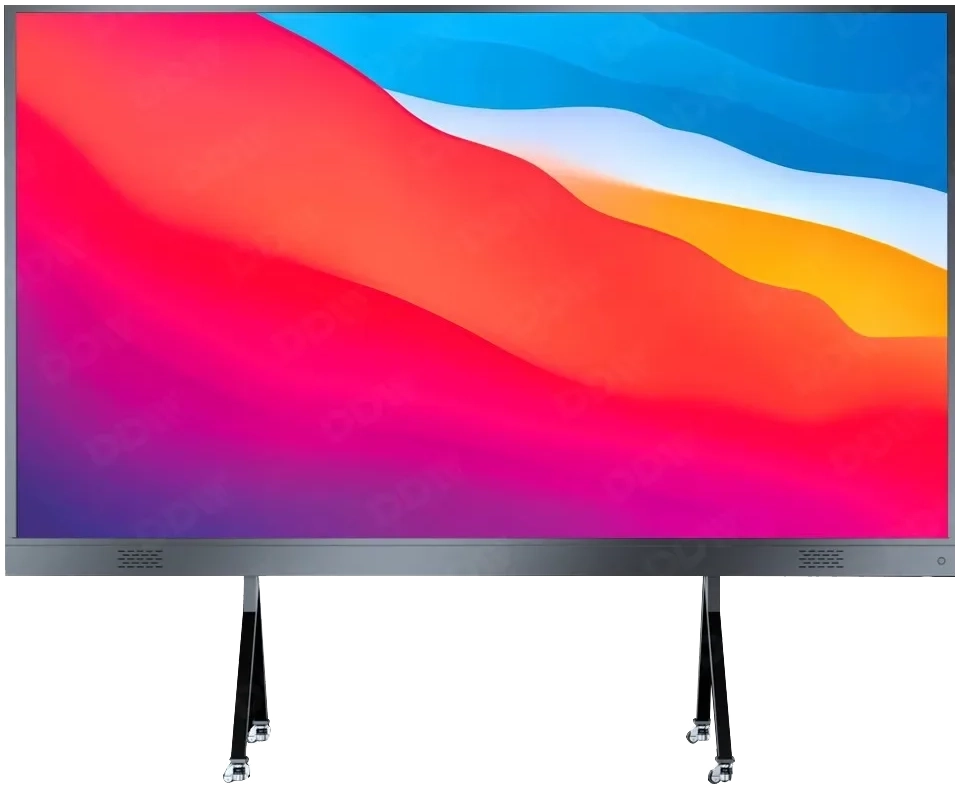

AIO Series

LED conference all-in-one machine is a super-large intelligent seamless splicing screen with excellent screen body technology, and a new generation of multi-functional display products combined with efficient conference system. Support multi-party video communication, information broadcasting, collaborative whiteboard, wireless projection, and combine high-quality 2K/4K/8K intelligent large-screen display terminals to bring a safe, reliable, convenient and efficient, low-threshold, easy-to-use and easy-to-deploy ultimate video experience

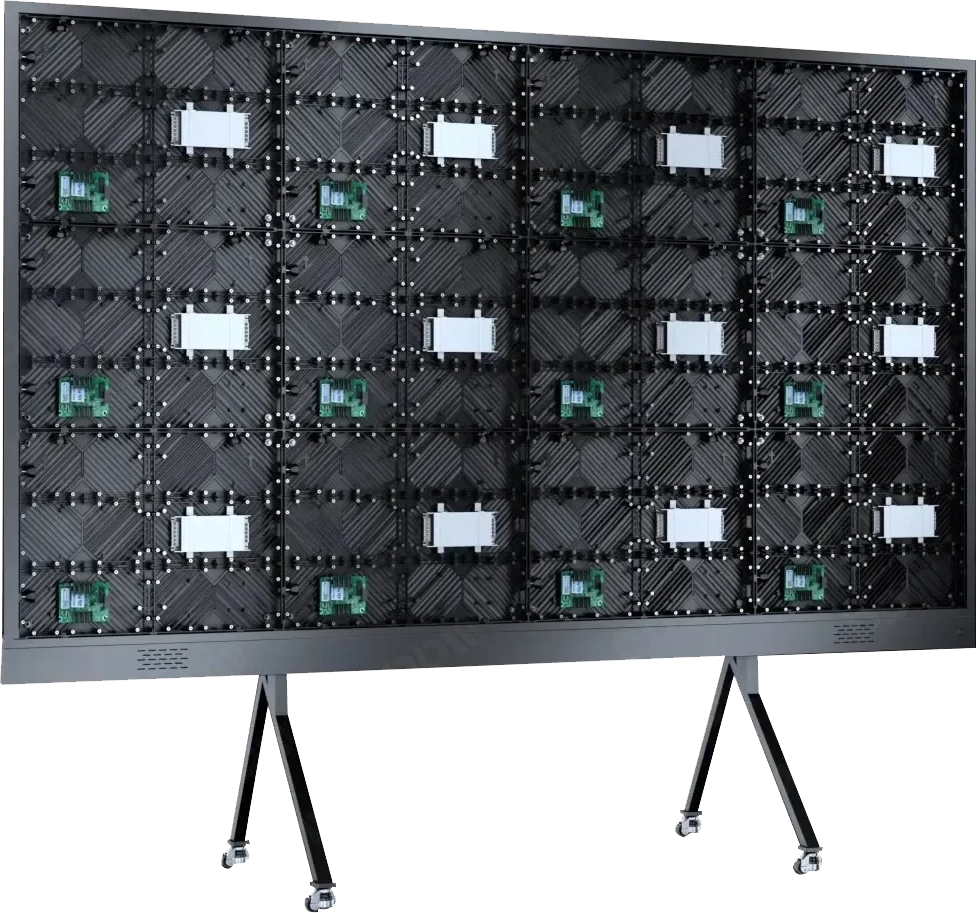

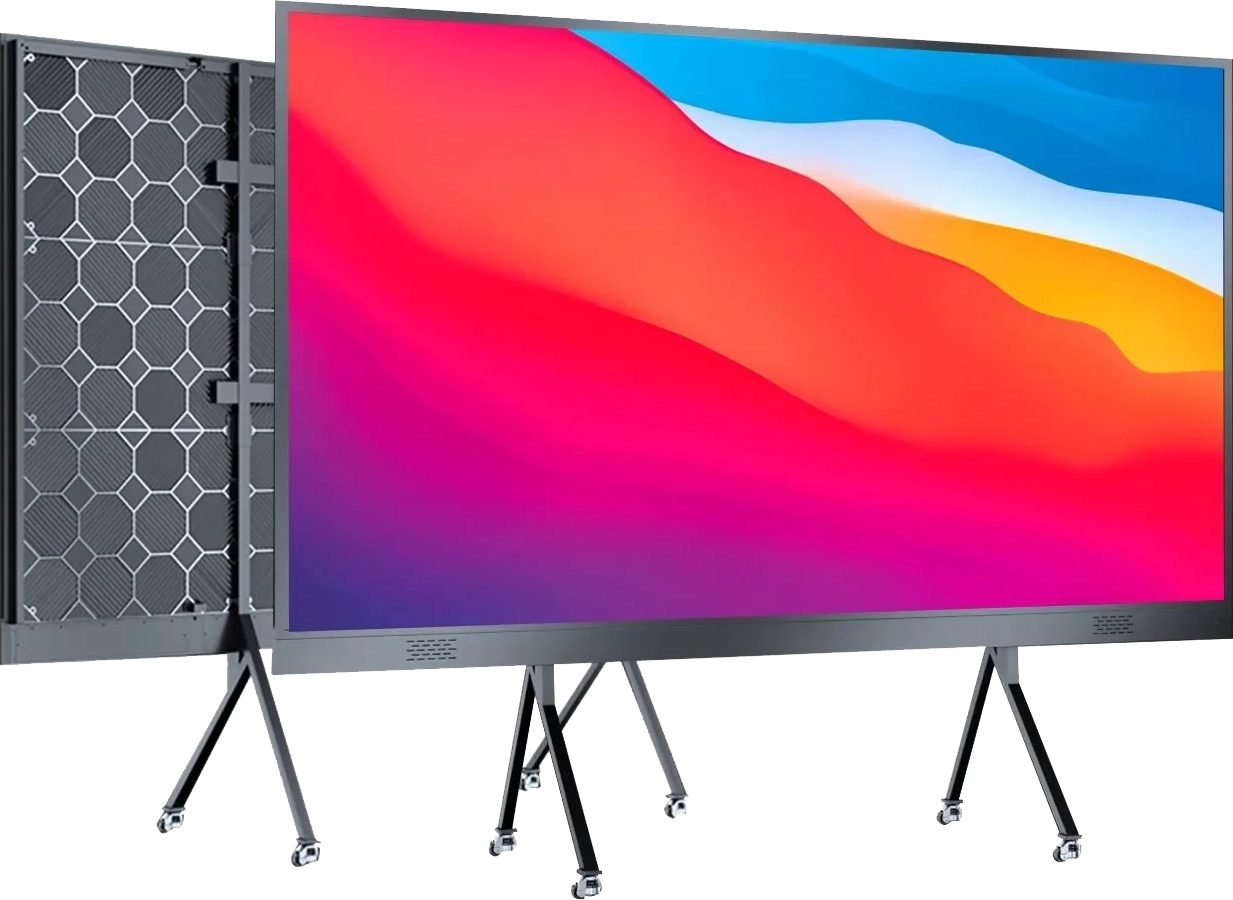

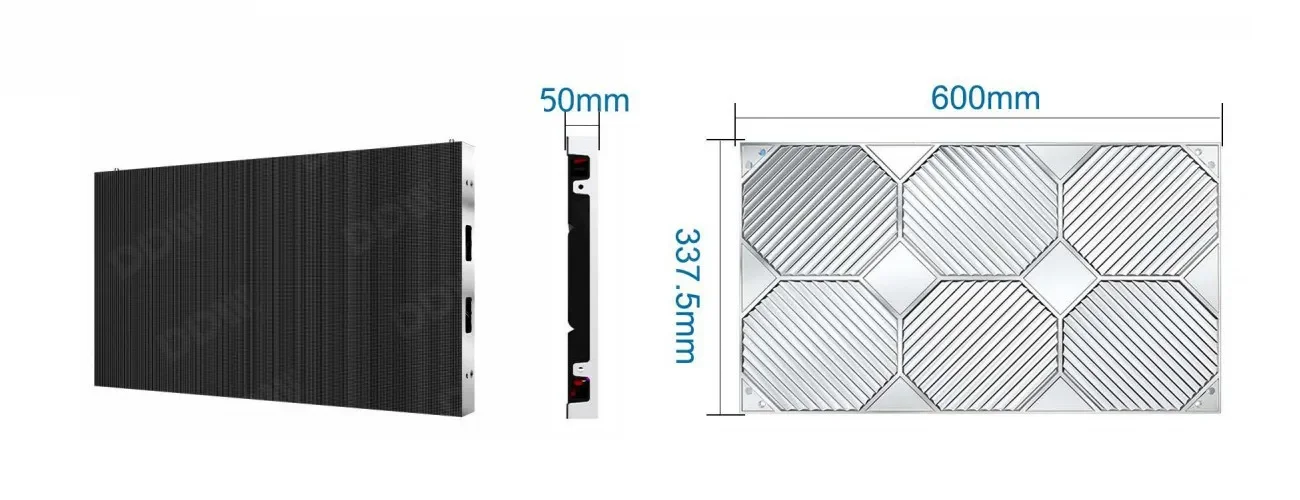

Standardized Cabinet Design

Can be quickly and seamlessly spliced into a large screen

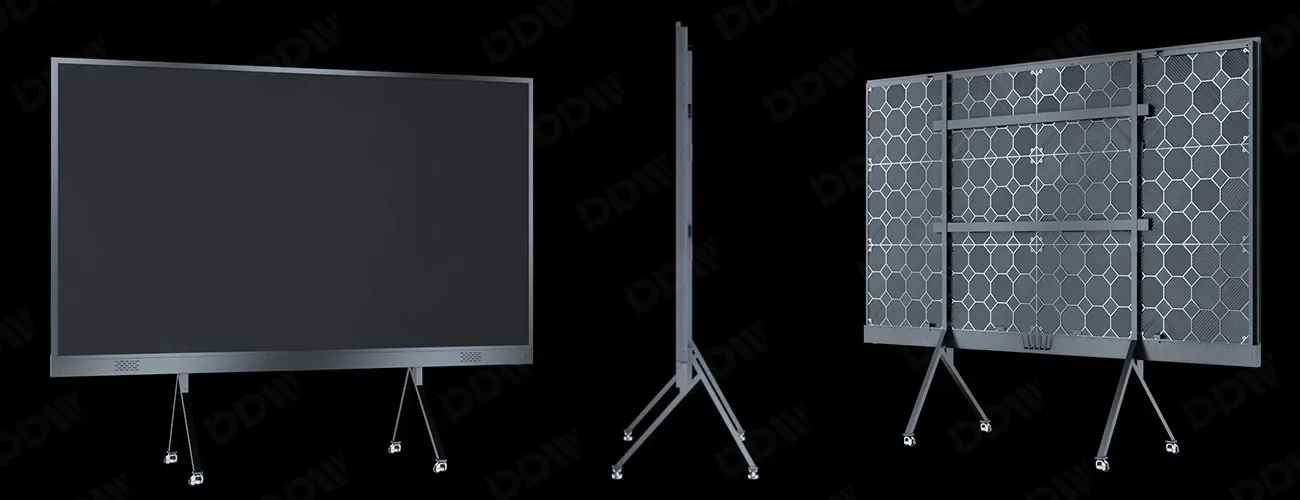

Simple and Generous Appearance

Simple and firm support design,four universal wheels are equipped as standard, with unlimited movement

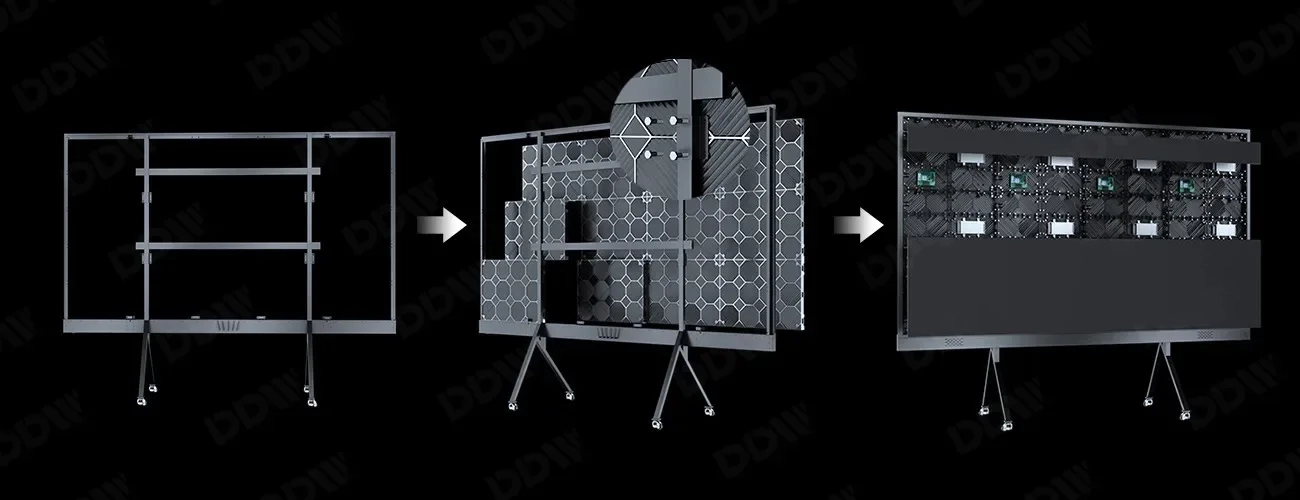

Installation

Aluminum profile support

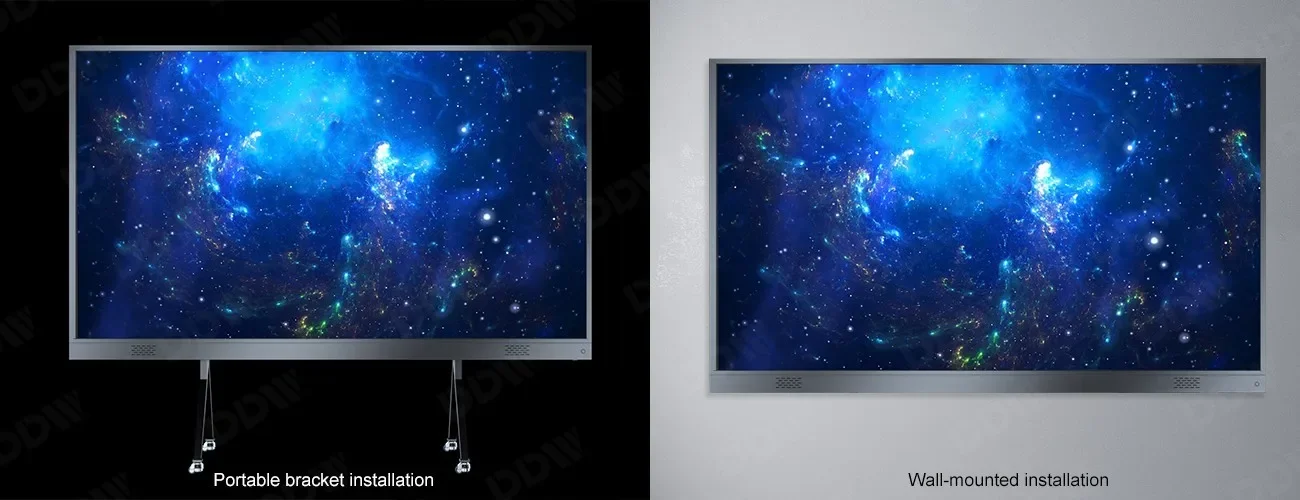

Various Installation Mode

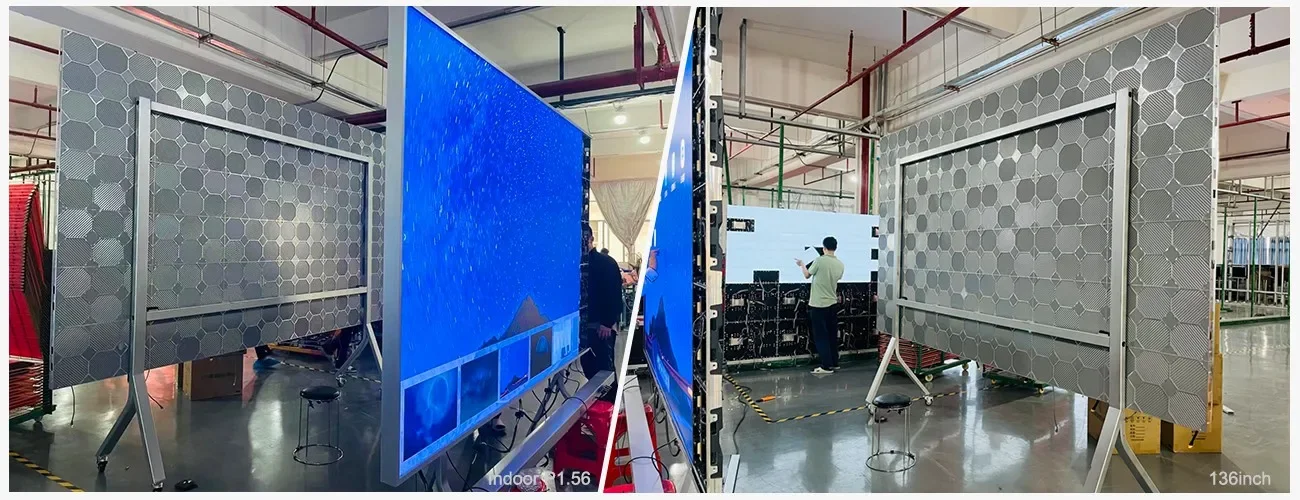

Aging Test


Specification

Integrated solutions provider dedicated to LED product development

Product modelAIO-1.25(110inch)AIO-1.56(136inch)AIO-1.86(165inch)
Pixel ConfigurationSMD1010SMD1212SMD1212
Pixel pitch1.25mm1.56mm1.86mm
Display size(mm)2400*13503000*1687.53600*2025
Display resolution1920*10801920*10801920*1080
Pixel density/m²640,000422,500288,906
Brightness200-400nits200-400nits200-400nits
Weight100kg120kg145kg
Panel size2450*1500*65mm3008*1791.5*65mm3608*2129*65mm
Ingress protectionIP35IP35IP35
Viewing angle140° / 140°140° / 140°140° / 140°
Processing depth14-16bit14-16bit14-16bit
Date refresh rate≥3840Hz≥3840Hz≥3840Hz
Power consumption (Max/Avg.)1600/800W/m²1800/1200W/m²2500/1670W/m²

Application Fields

Integrated solutions provider dedicated to LED product development

School

hotel

Home Cinema

Conference Room

Integrated solution provider dedicated to LED product development
