Pixel pitch: P1.5, P1.8, P2, P2.5

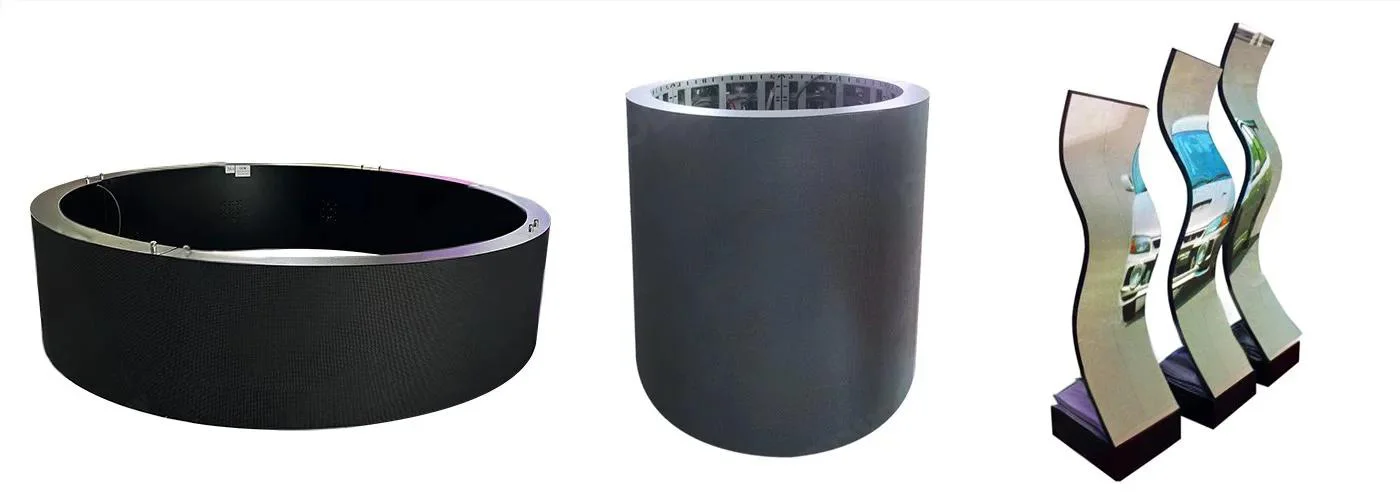

Curved Series

Made out of P1.5 P1.8 P2 P2.5 240×120 320×160 flexible led modules, widely used for airports, shopping malls, science exhibitions, concerts, theaters, television studios, creative exhibition halls,nightclubs,weddings and other multimedia fields.

Features
Specification
Application Fields
Related Case

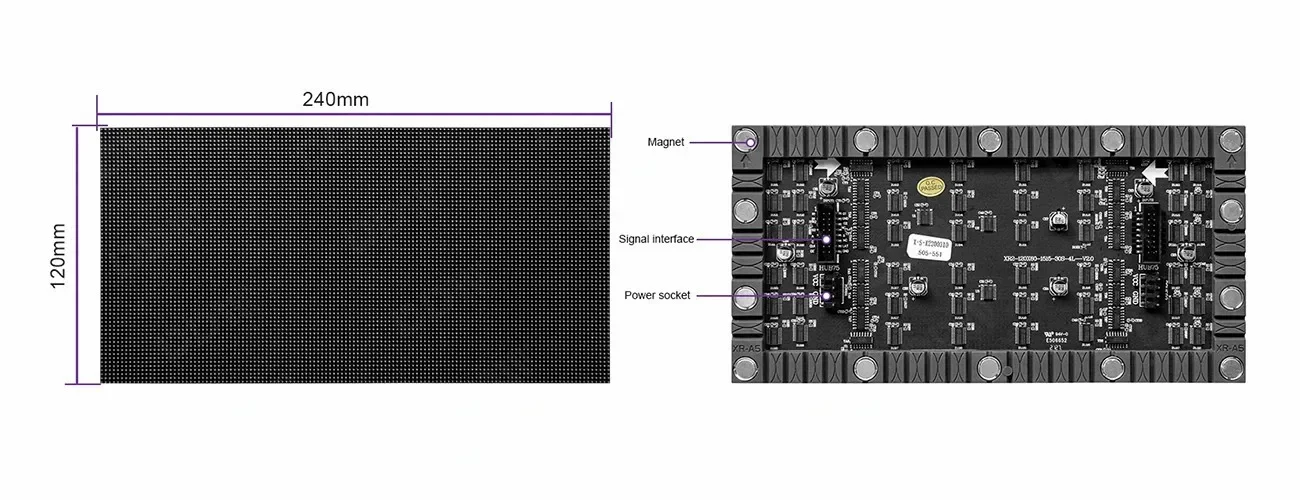

Module Specs

The dimensions of flexible led modules are 240 * 120 (mm) and 320 * 160 (mm). These modules will be the basic elements to build the entire screen.

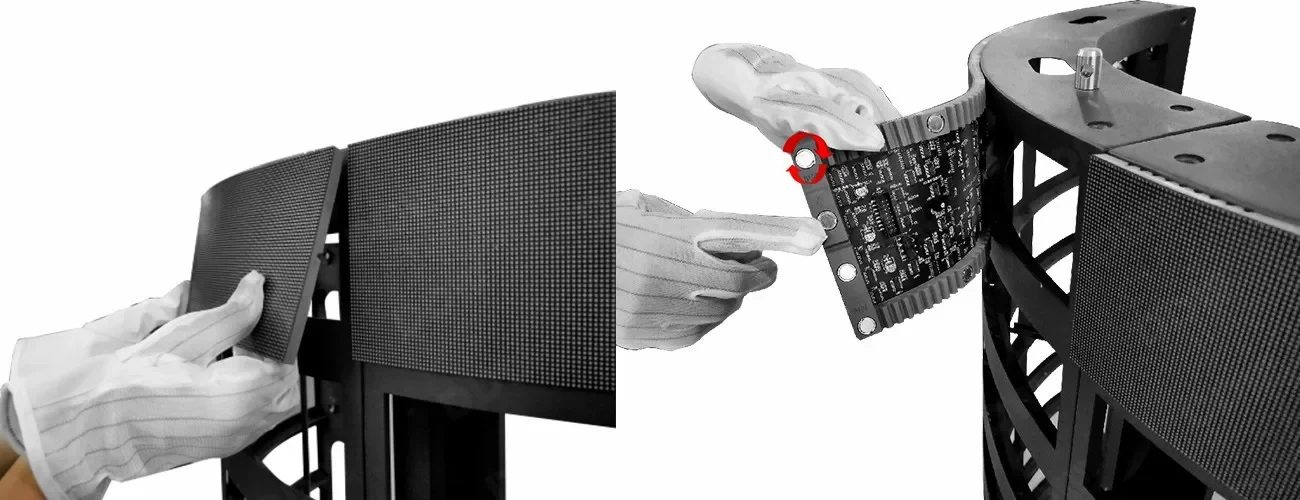

Magnetic suction installation

Front access design. THRV LED poster can be easily removed using tools from the front side within just 5 seconds.

Paste by Magnets,Easy installation

There’re multiple strong magnets on rear of each module. You need to just paste on the frame surface during the assembly process.When the frame surface is uneven and there is a gap, it allows us to adjust flexibly. We can also easily remove the module and restore it back.

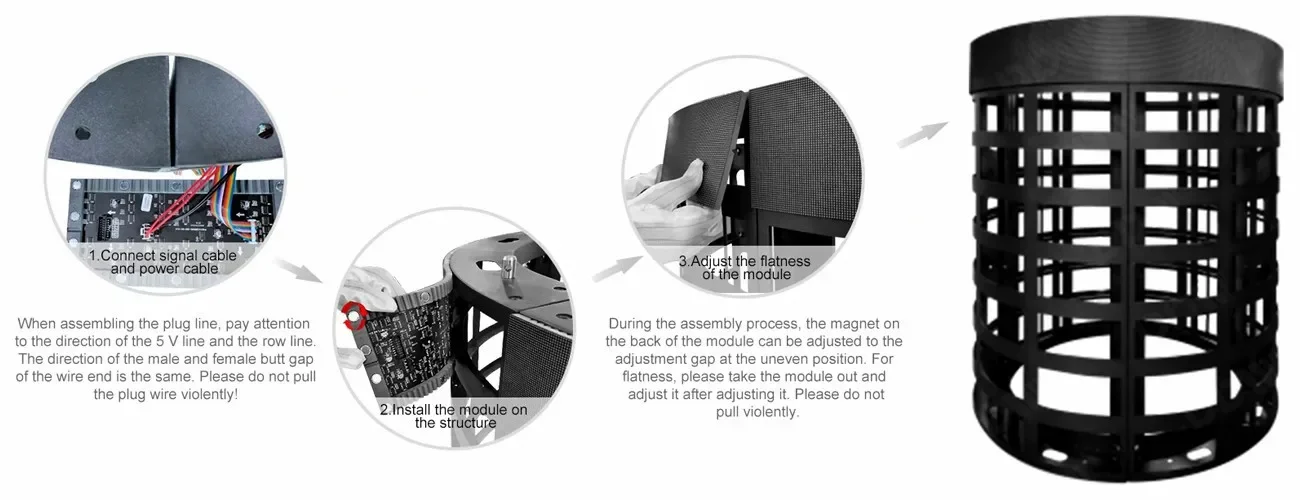

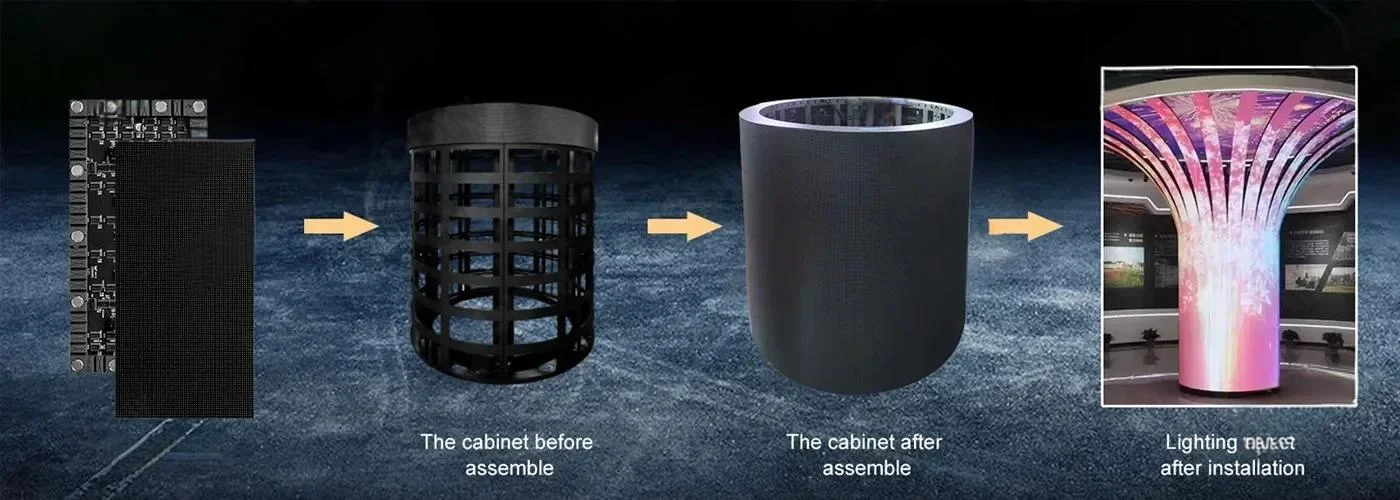

Installation steps

Various installation mode

Specification

Integrated solutions provider dedicated to LED product development

Product modelCurved-1.56Curved-1.875Curved-2Curved-2.5
Pixel ConfigurationSMD1010SMD1010SMD1010SMD1515
Pixel pitch1.56mm1.875mm2mm2.5mm
Pixel density/m²409,600284,444250,0000160,000
Brightness800-1200nits800-1200nits800-1200nits800-1200nits
Moudul Weight190g170g170g170g
Ingress protectionIP31IP31IP31IP31
Viewing angle140° / 140°140° / 140°140° / 140°140° / 140°
Processing depth14-16bit14-16bit14-16bit14-16bit
Date refresh rate≥3840Hz≥3840Hz≥3840Hz≥3840Hz
Power consumption (Max/Avg.)700/350W/m²700/350W/m²700/350W/m²700/350W/m²

Application Fields

Integrated solutions provider dedicated to LED product development

Airport

Shopping mall

hotel

Exhibition Hall
