FA160 Series

Pixel pitch: P2.5, P3, P4

FA160 Series

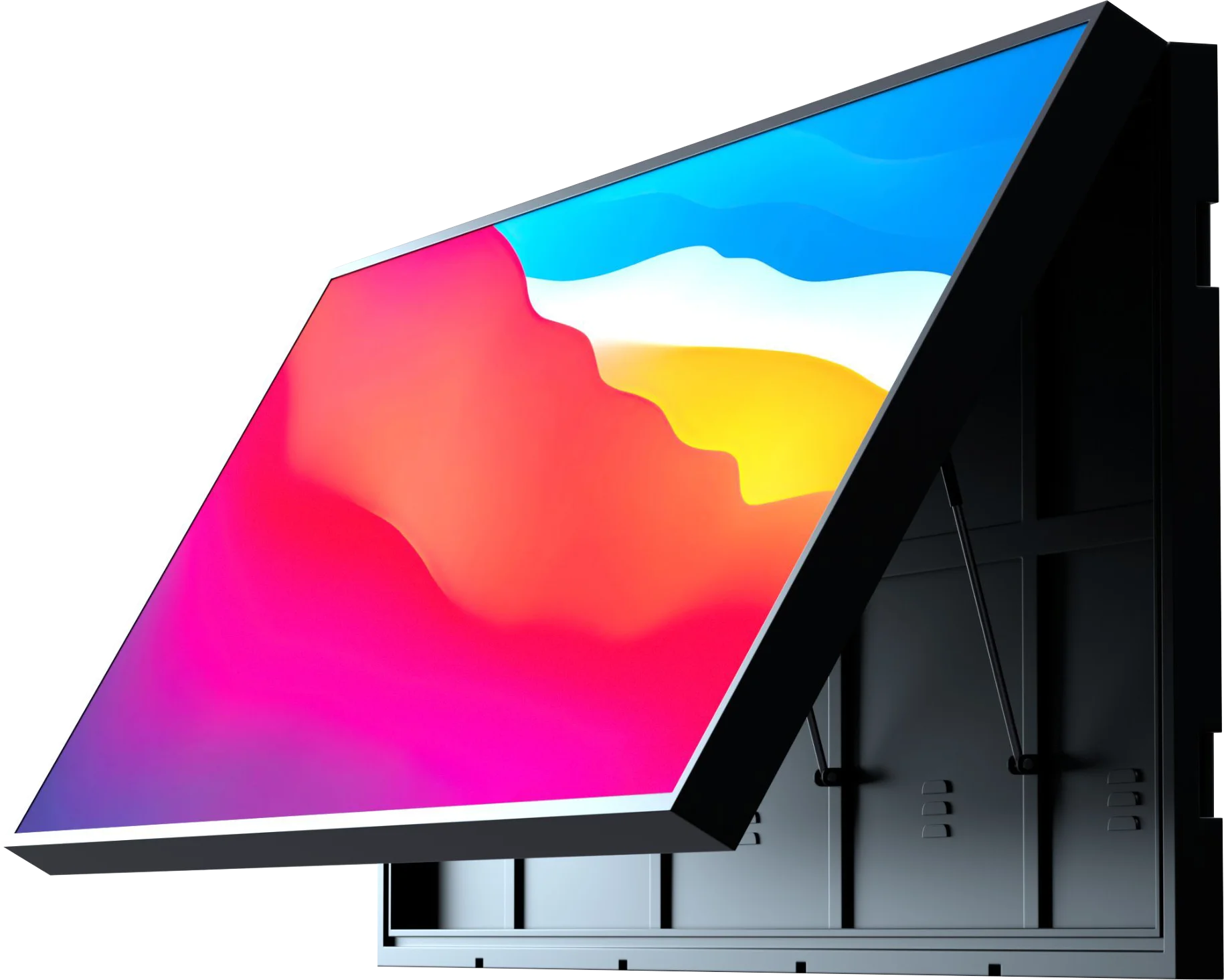

This series offers two unique models: a single-sided flip version and a double-sided flip version. The single-sided model is ideal for wall mounting, making it perfect for storefronts, malls, and any location where height is a consideration. Its design ensures maximum visibility for passersby, effectively boosting advertising impact and brand exposure.

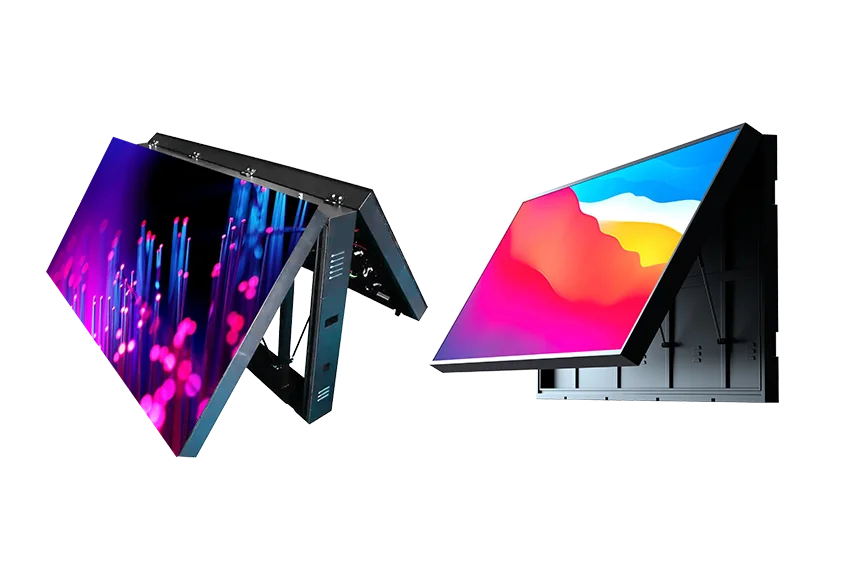

Single Sided & Double Sided Available

Single sided and double sided type available.

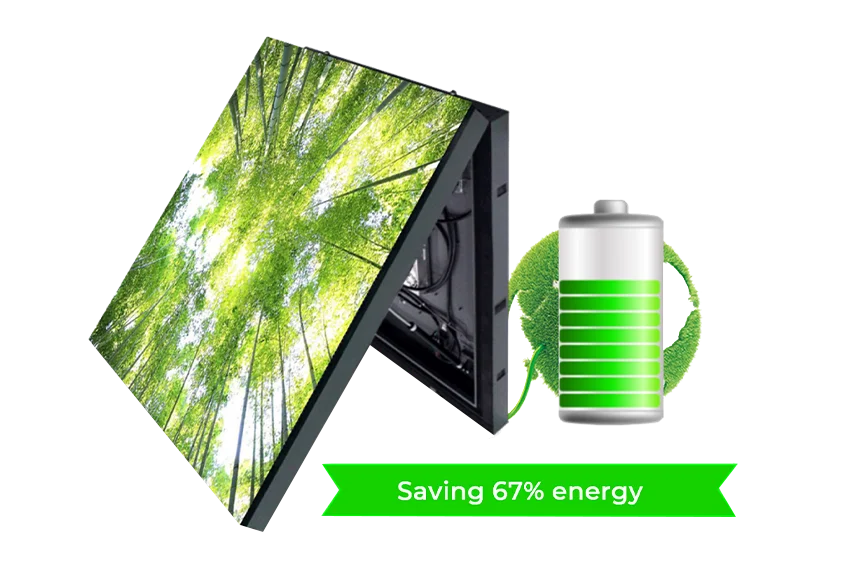

Energy Saving

FA160 Series offers a complete of reliable, powerful and user-friendly Lower Power Consumption LED Screens that perform high brightness and great image quality.

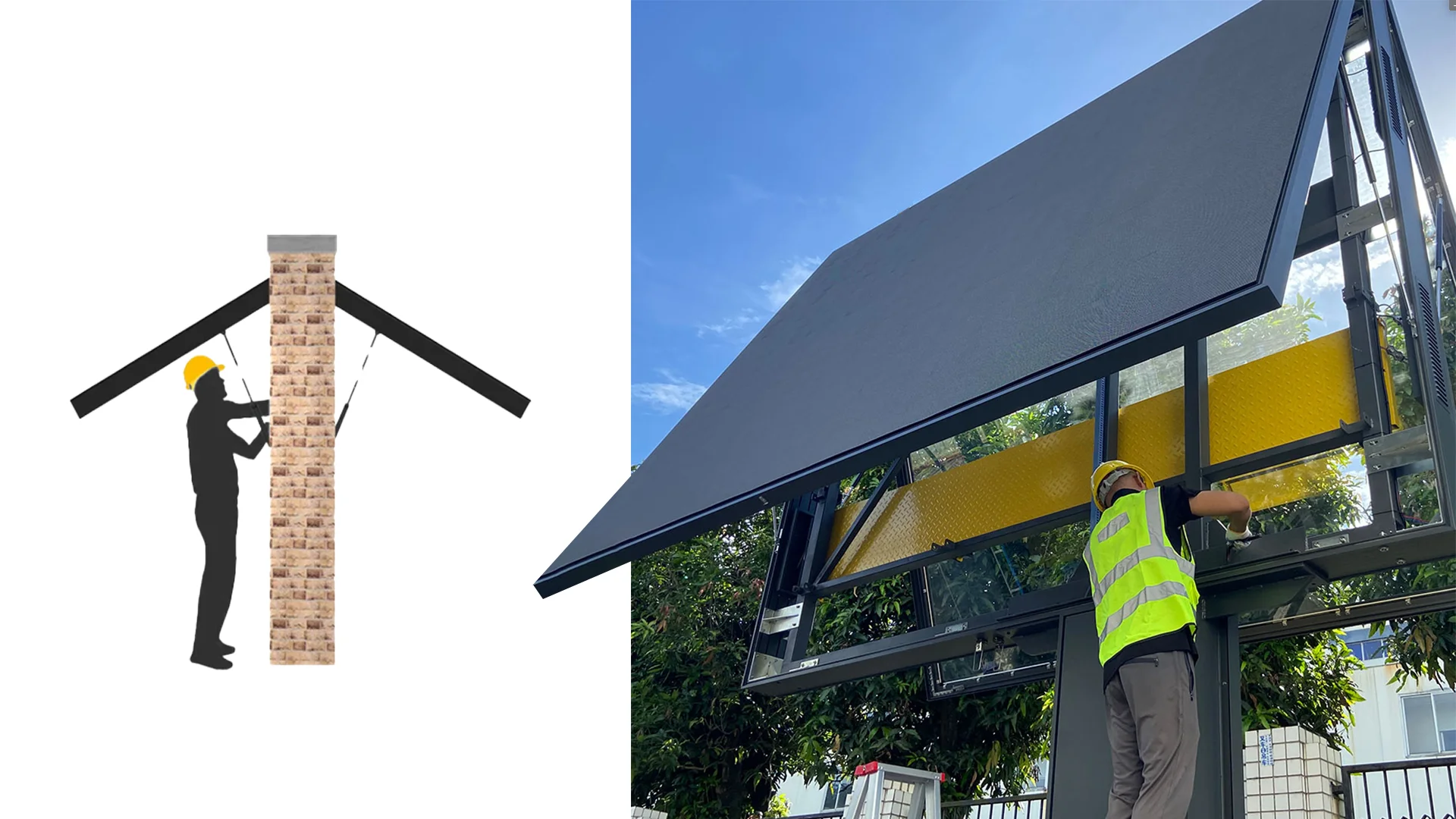

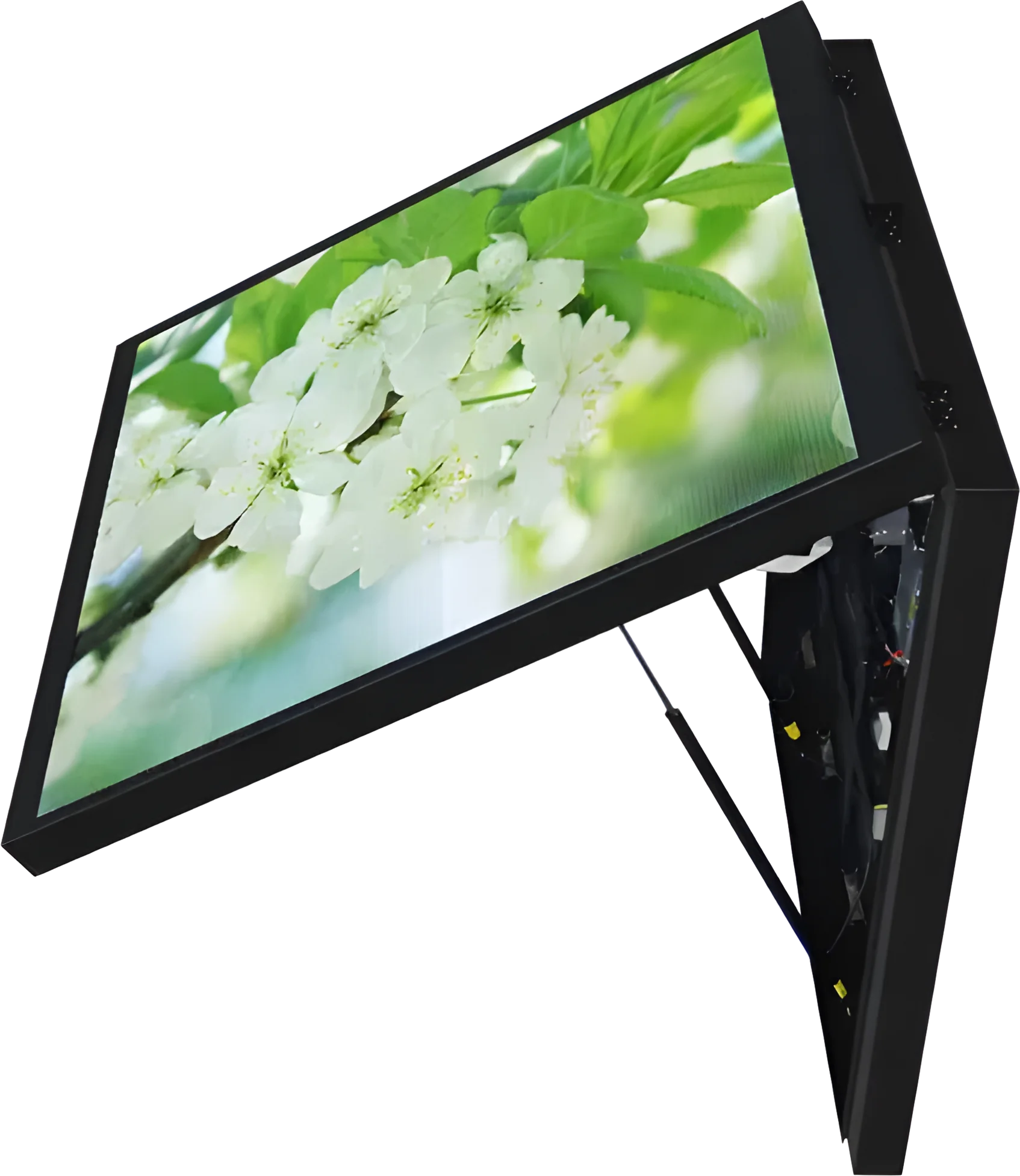

Totally Front Service

totally front service for modules, power supply and cables,easy for installation.

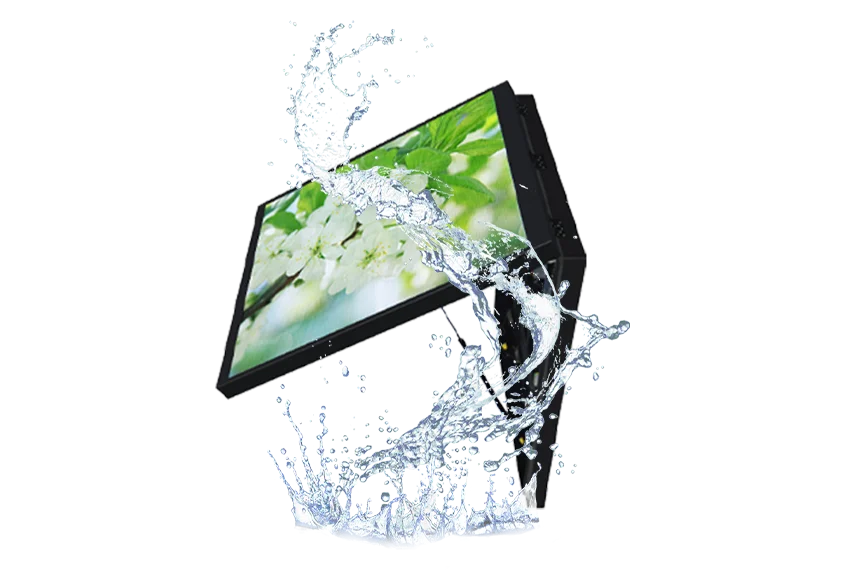

IP65 Weather Rating

Special treatment of protection rating with IP65/IP54, fully waterproof panel.


High Brightness

High brigthness more than 5500nits, outstanding visibility and high performance, is the perfect outdoor display for advertising & information.

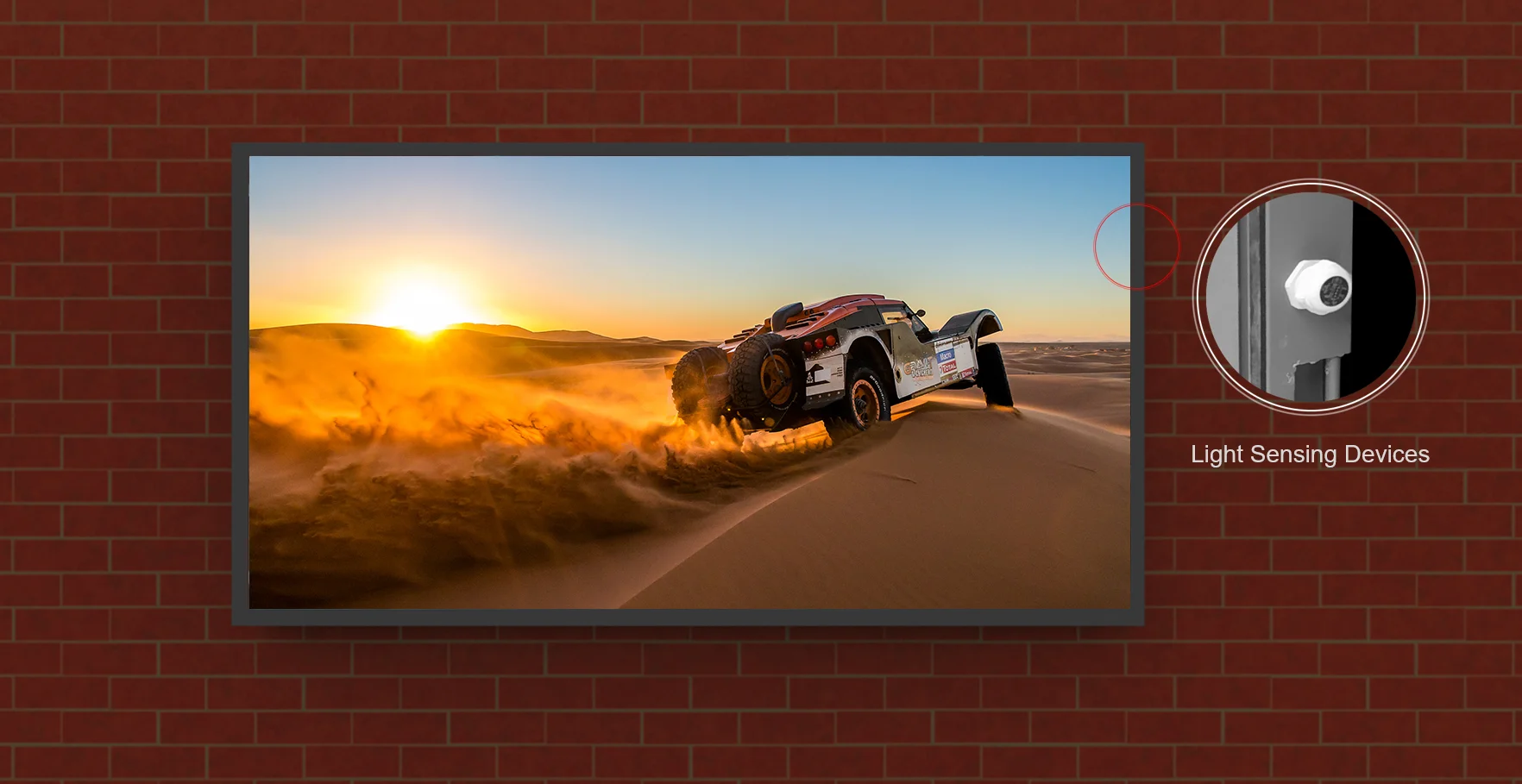

Automatic Brightness Control

There are four cooling fans inside the cabinet, which can quickly reduce the temperature of the display and extend the life of the display.


Specification

Integrated solutions provider dedicated to LED product development

Product modelFA160-2.5FA160-3FA160-4
Pixel ConfigurationSMD1415SMD1921SMD1921
Pixel pitch2.5mm3.076mm4mm
Pixel density/m²160,000105,62562,500
Brightness≥5000nit≥5000nit≥5000nit
Weight161616
Panel sizeCustomizableCustomizableCustomizable
Ingress protectionIP65IP65IP65
Viewing angle140° / 120°140° / 120°140° / 120°
Processing depth14bit16bit16bit
Date refresh rate≥3840Hz≥3840Hz≥3840Hz
Power consumption (Max/Avg.)550/185W/m²550/185W/m²550/185W/m²

Application Fields

Integrated solutions provider dedicated to LED product development

Billboard

Gas Station

Digital Signage

Shopping Mall Billboard
