Pixel pitch: P1.56,P1.95,P2.6,P2.9,P3.9

FI1000 Series

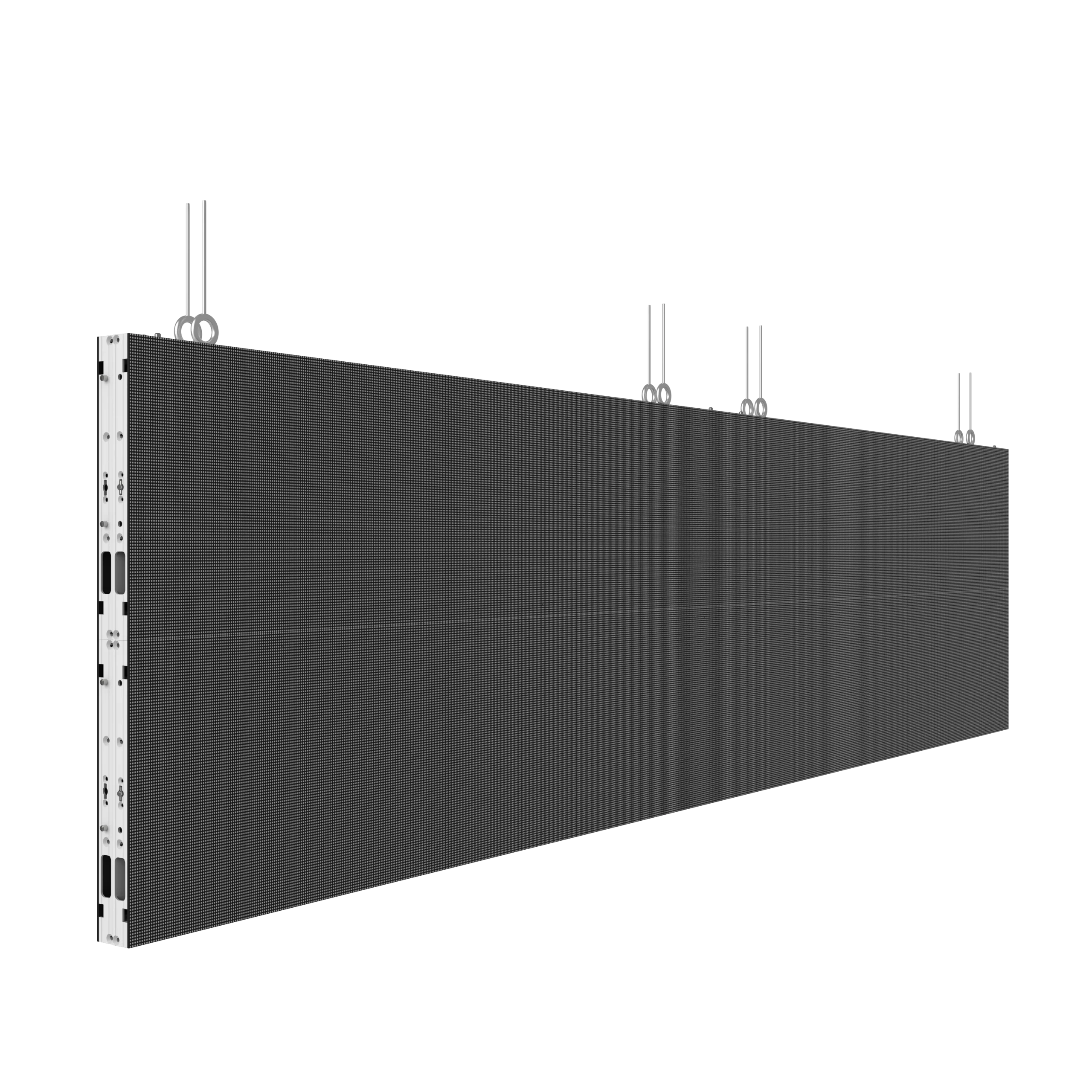

Indoor Fixed Die-casting Aluminum LED Display for LED Video Wall

Features
Specification
Application Fields
Related Case

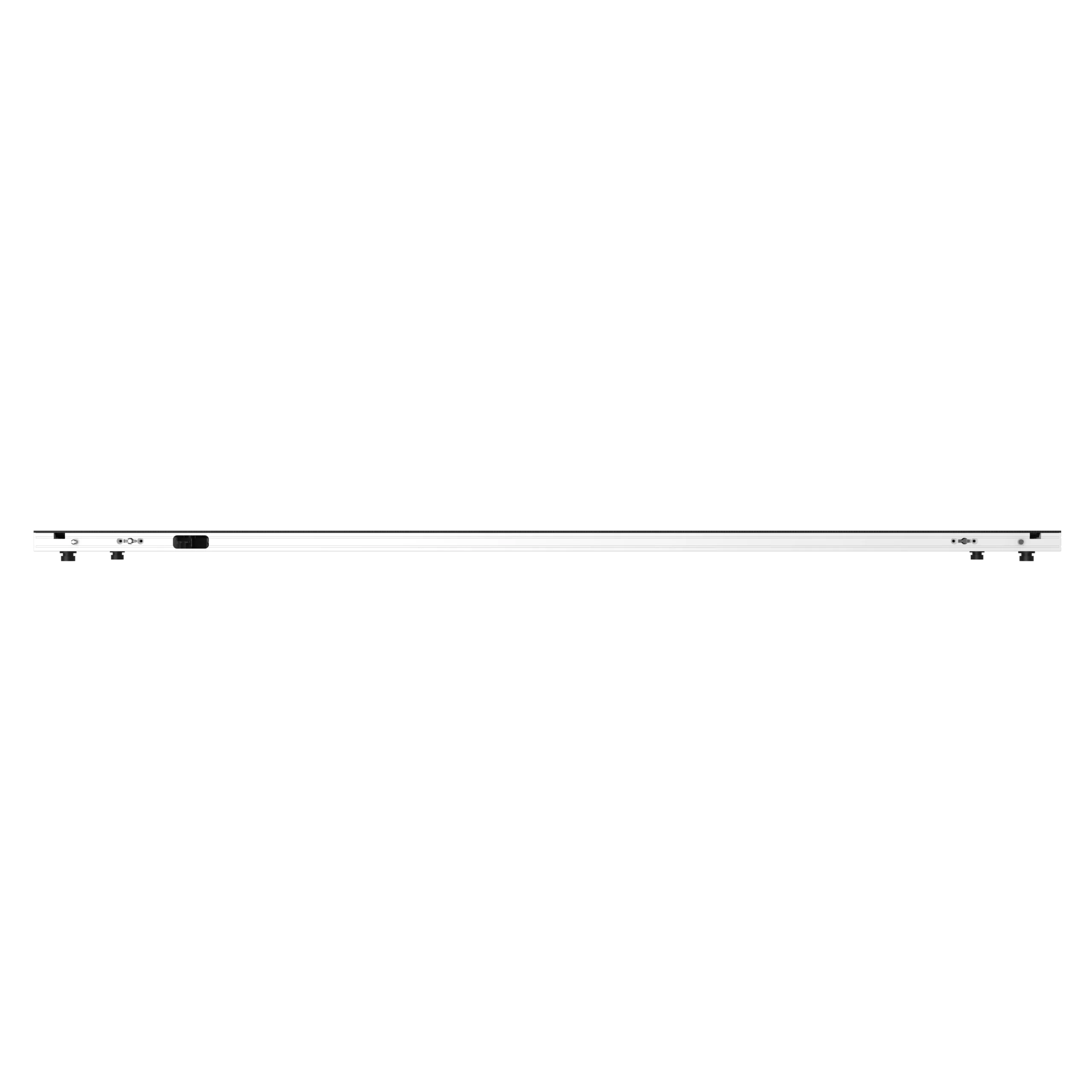

Ultra Slim

Flat and Slim, only 20.6mm inthickness, save installation space andeasy on your mounting structures.

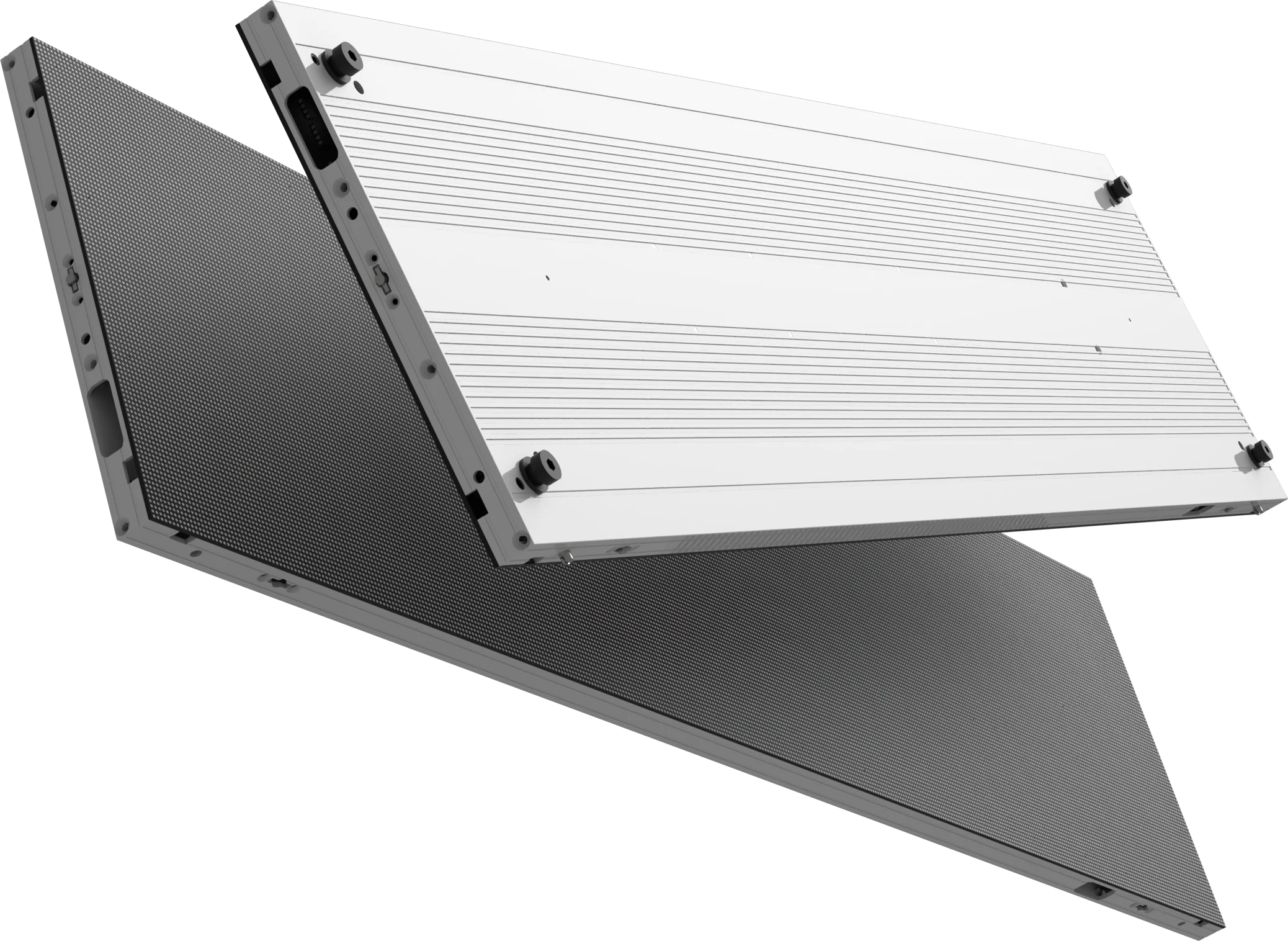

Ultra Lightweight

Ultra-lightweight cabinet, each unit weighs a mere 4.8kg, the super light and thin design greatly facilitates your installation and transportation, saving a lot of money on your labor costs.

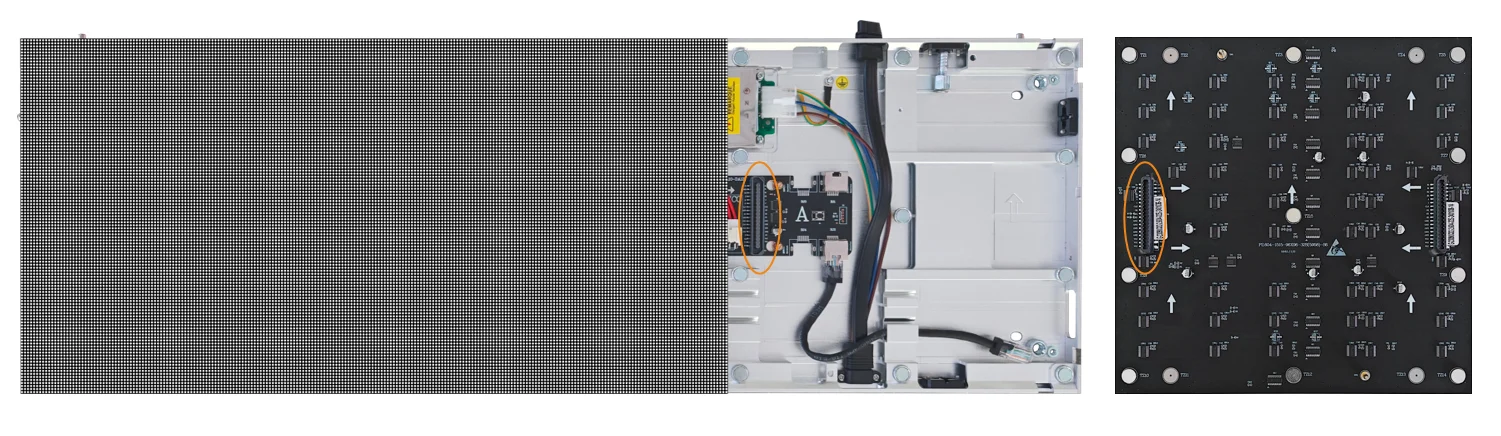

Cableless Design

The hard connection of the LED cabinet and modules makes this LED display cabinet more reliable and safer and reduces failure rates further.

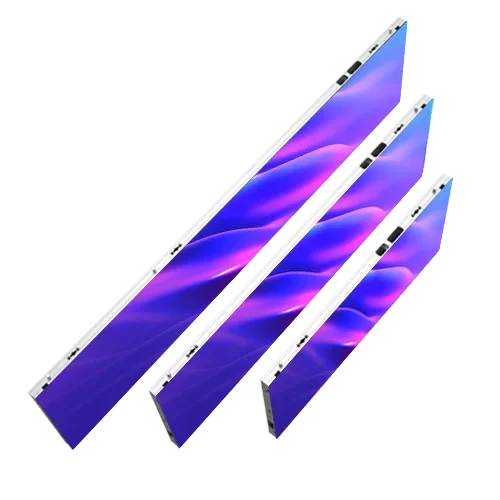

Multiple Sizes

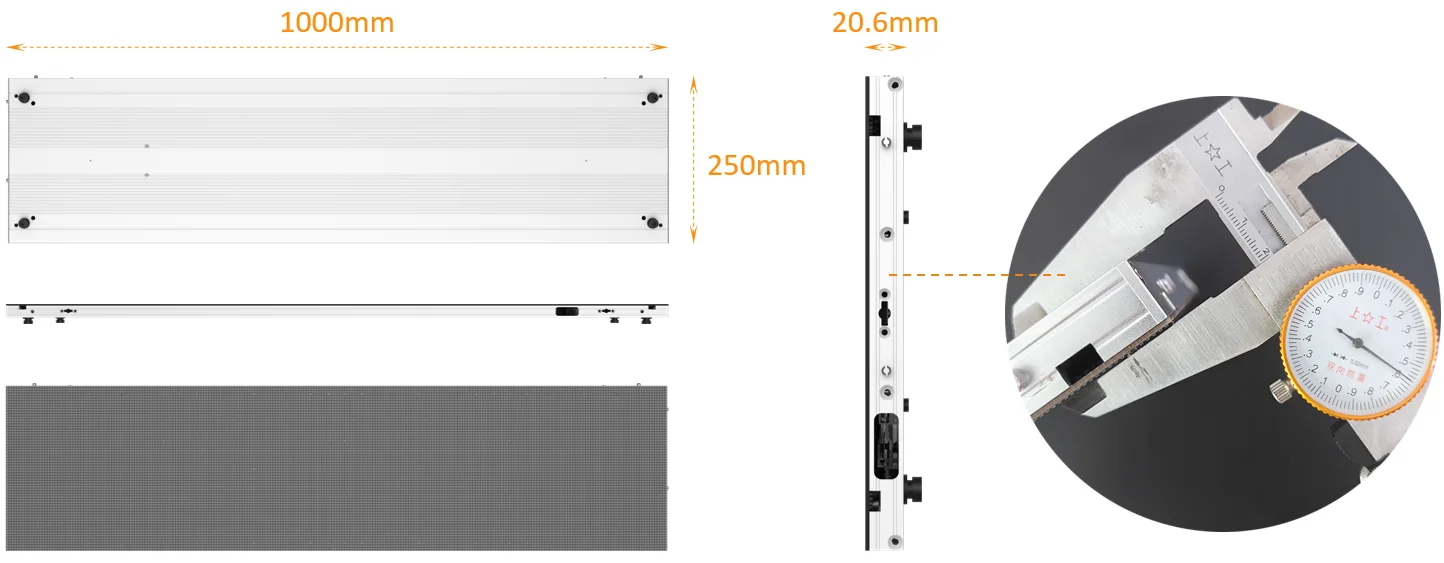

1000*250*20.6mm, 750*250*20.6mm, and 500*250*20.6mm are available to meed more installation requirements.

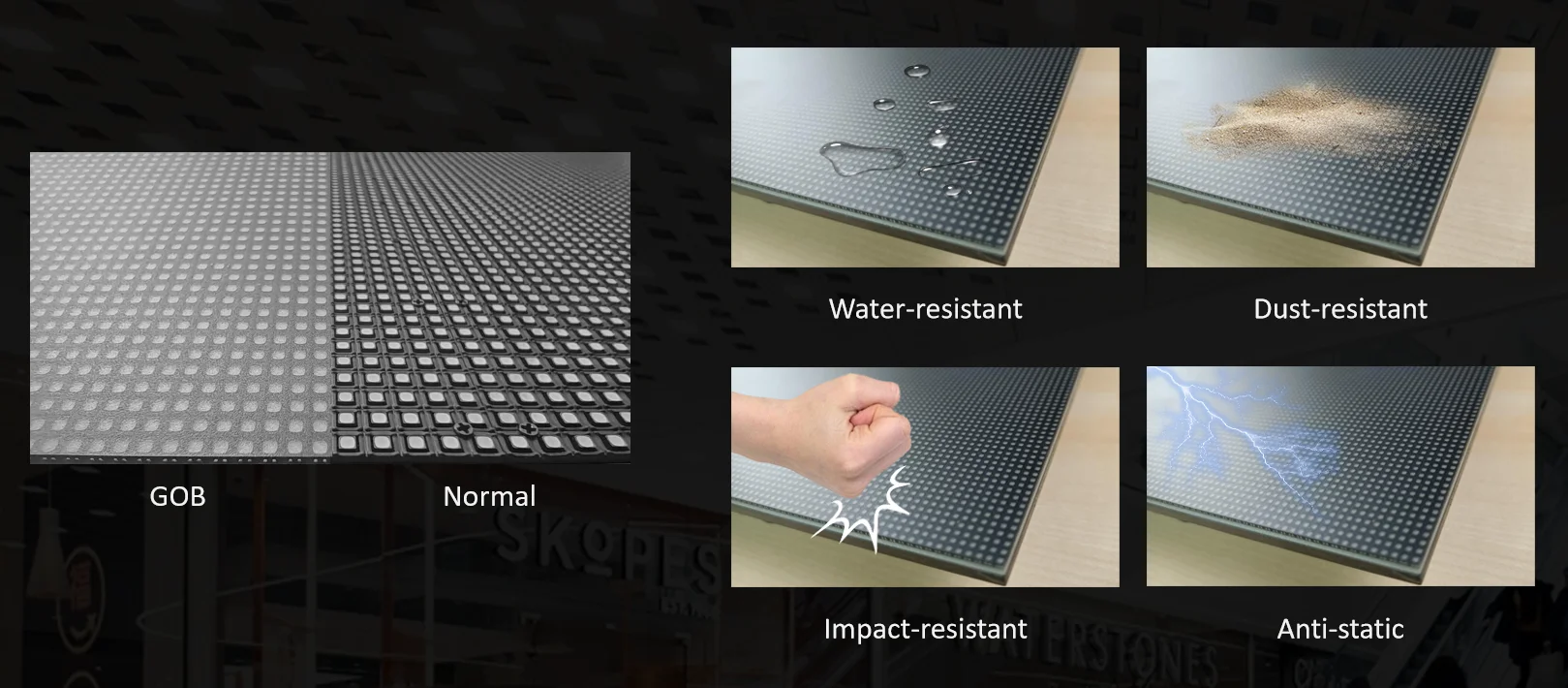

Gob High Protectionn(Optional)

Special treatment with GOB technology, enabling surface water- resistant, dust-resistant, impact-resistant and anti-static.

Support Double Sided Display

Special treatment with GOB technology, enabling surface water- resistant, dust-resistant, impact-resistant and anti-static.

Excellent Visual Performance

High refresh ≥3840Hz, HDR high resolution, Low brightness, so the LED screen reaches the perfect visual performance.

Specification

Integrated solutions provider dedicated to LED product development

Product modelFI1000-1.56FI1000-1.95FI1000-2.6FI1000-2.9FI1000-3.9
Pixel ConfigurationSMD1212SMD1515SMD1515SMD1515SMD2020
Pixel pitch1.56mm1.953mm2.6mm2.9mm3.91mm
Pixel density/m²409,600262,144147,456112,89665,536
Brightness≥600nit≥600nit≥600nit≥600nit≥600nit
Weight4.84.84.84.84.8
Panel size1000*250*201000*250*201000*250*201000*250*201000*250*20
Ingress protectionIP20IP20IP20IP20IP20
Viewing angle140° / 120°140° / 120°140° / 120°140° / 120°140° / 120°
Processing depth14bit14bit16bit16bit16bit
Date refresh rate≥3840Hz≥3840Hz≥3840Hz≥3840Hz≥3840Hz
Power consumption (Max/Avg.)500/165W/m²500/165W/m²500/165W/m²500/165W/m²500/165W/m²

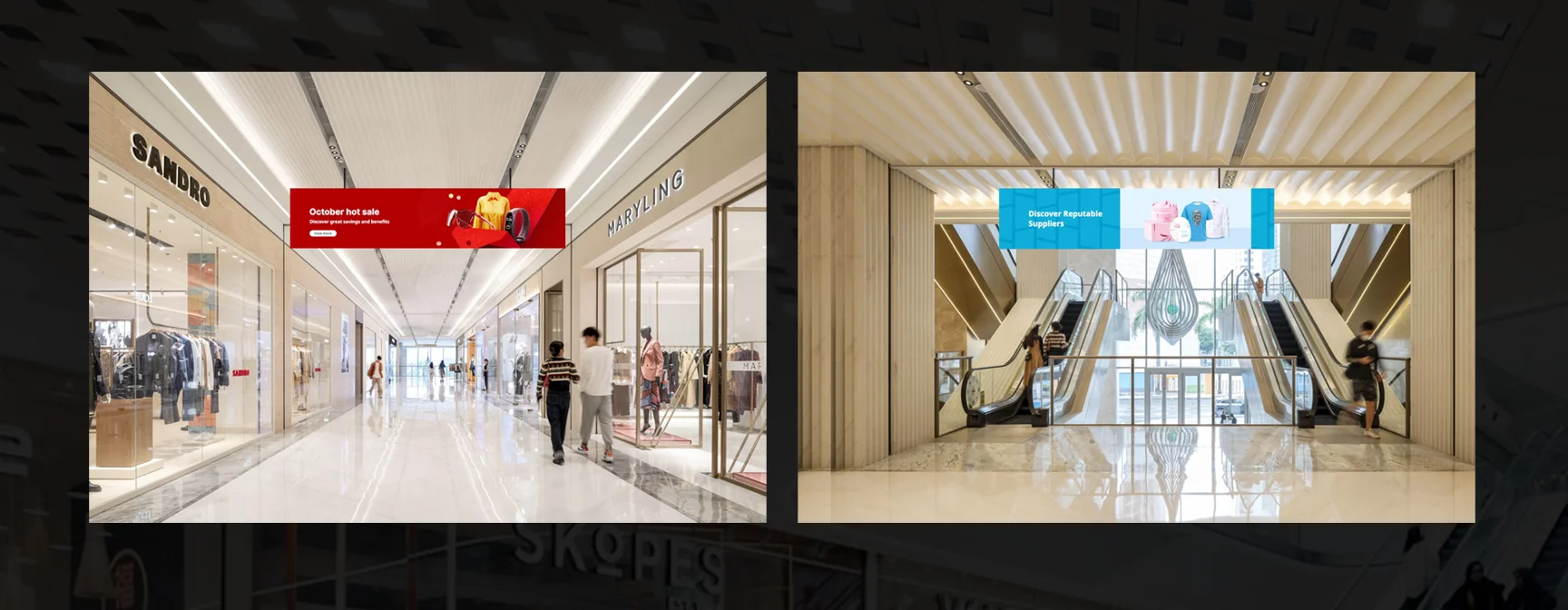

Application Fields

Integrated solutions provider dedicated to LED product development

Corporate-Experience

Corporate-Experience

Training-Room

Store-Advertising-TV

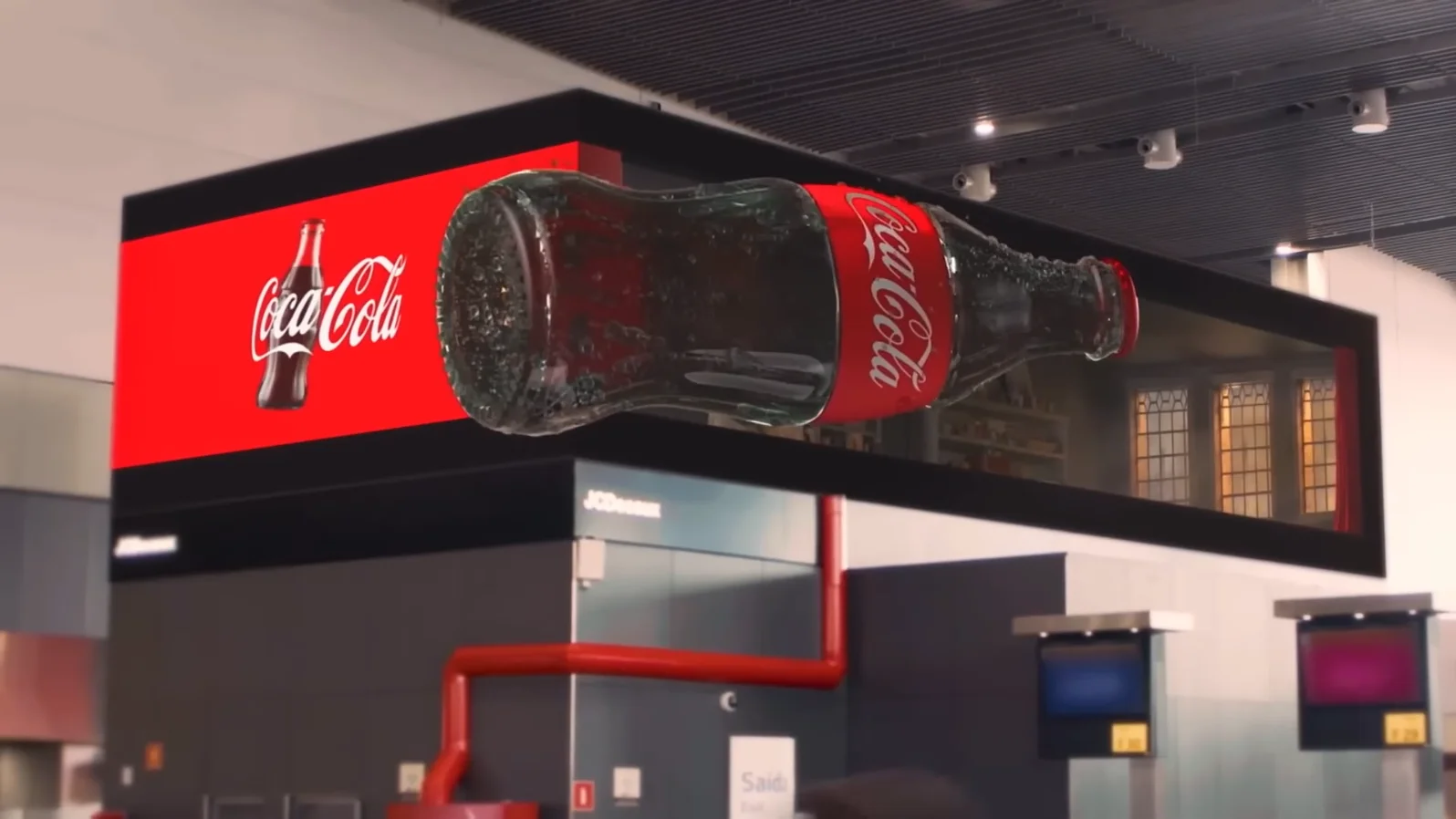

Related Case
