Pixel pitch: , P1.25,P1.53, P1.86, P2, P2.5

FI640 Series

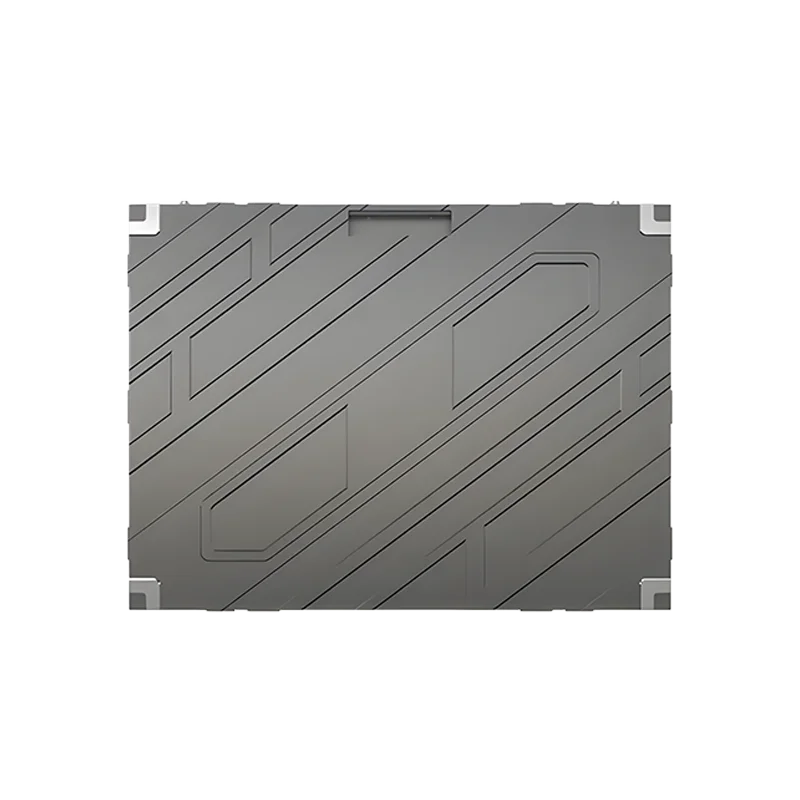

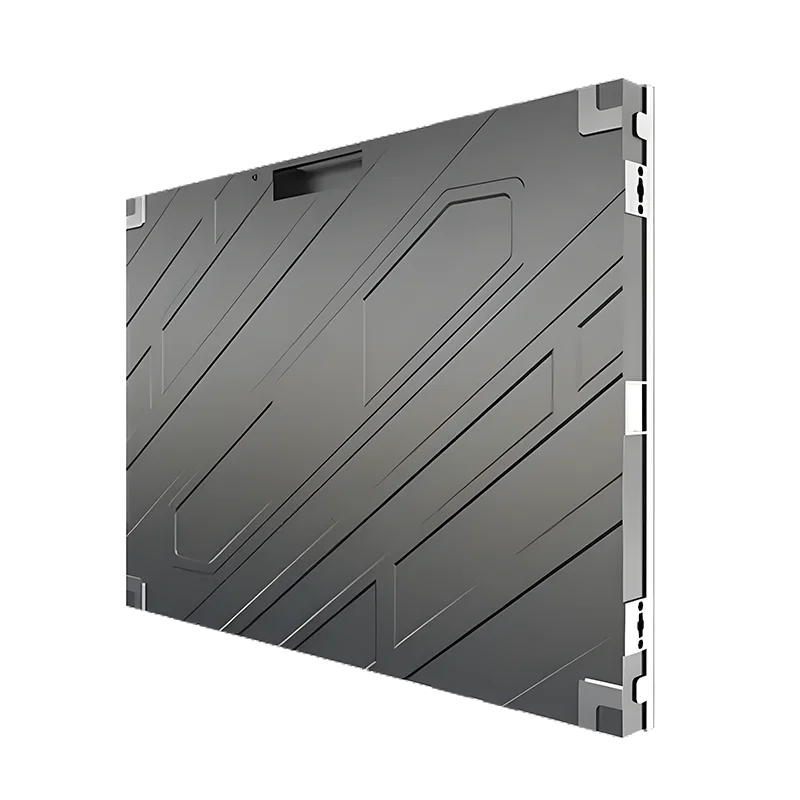

A front service design, a lightweight die-cast aluminum cabinet, a 4:3 golden ratio size, and multiple pixel pitch options.

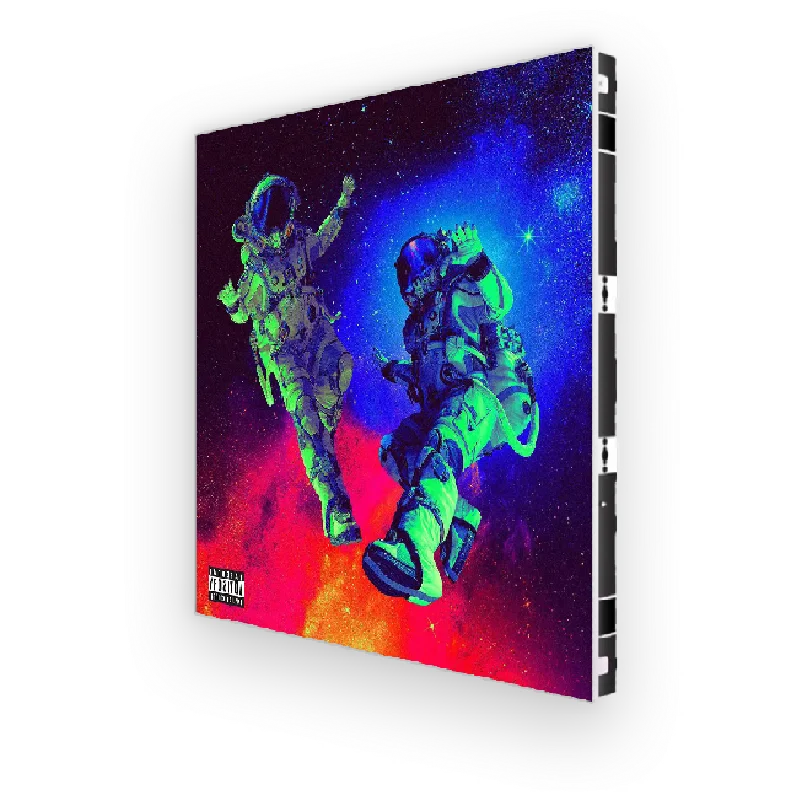

Incredible Power

The high refresh rate and color precision bring about incredible power, which can thoroughlyreproduce the true scenes and capture every micro movement. 3D display is alsosupportable, enabling your content to catch the full attention of whoever passes by, and toimmerse your audiences in whatever you present.


Super Convenience

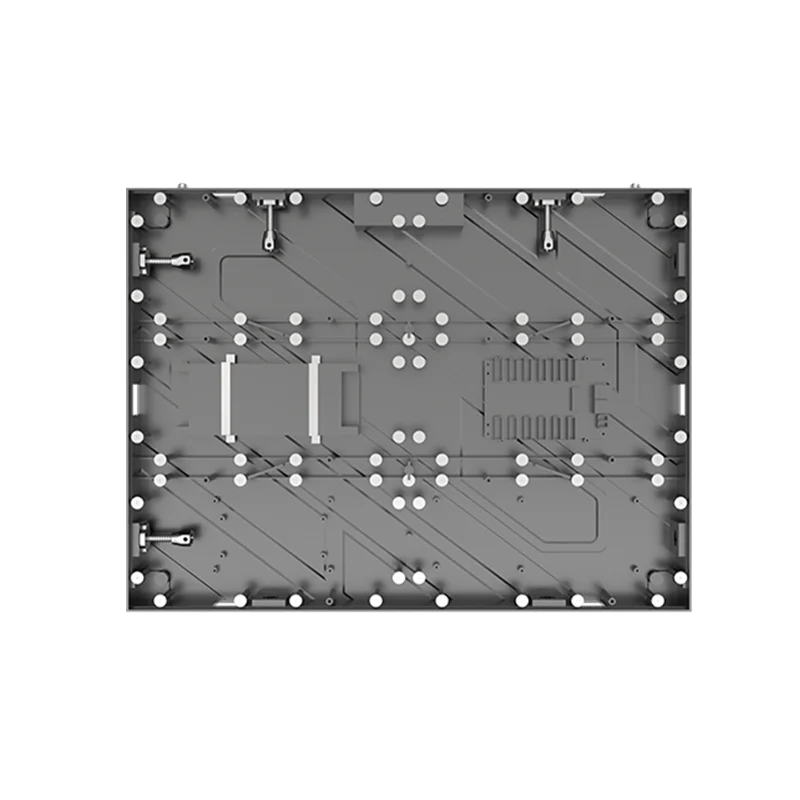

No frame. No seam. Thanks to Die-casting Aluminum design and inner cable connection, alyou need to do is put it on the wall for enjoying the splendid visual feast. Also the dedicatemagnet behind support amazing magnet absorption installation.


Exquisite Appearance

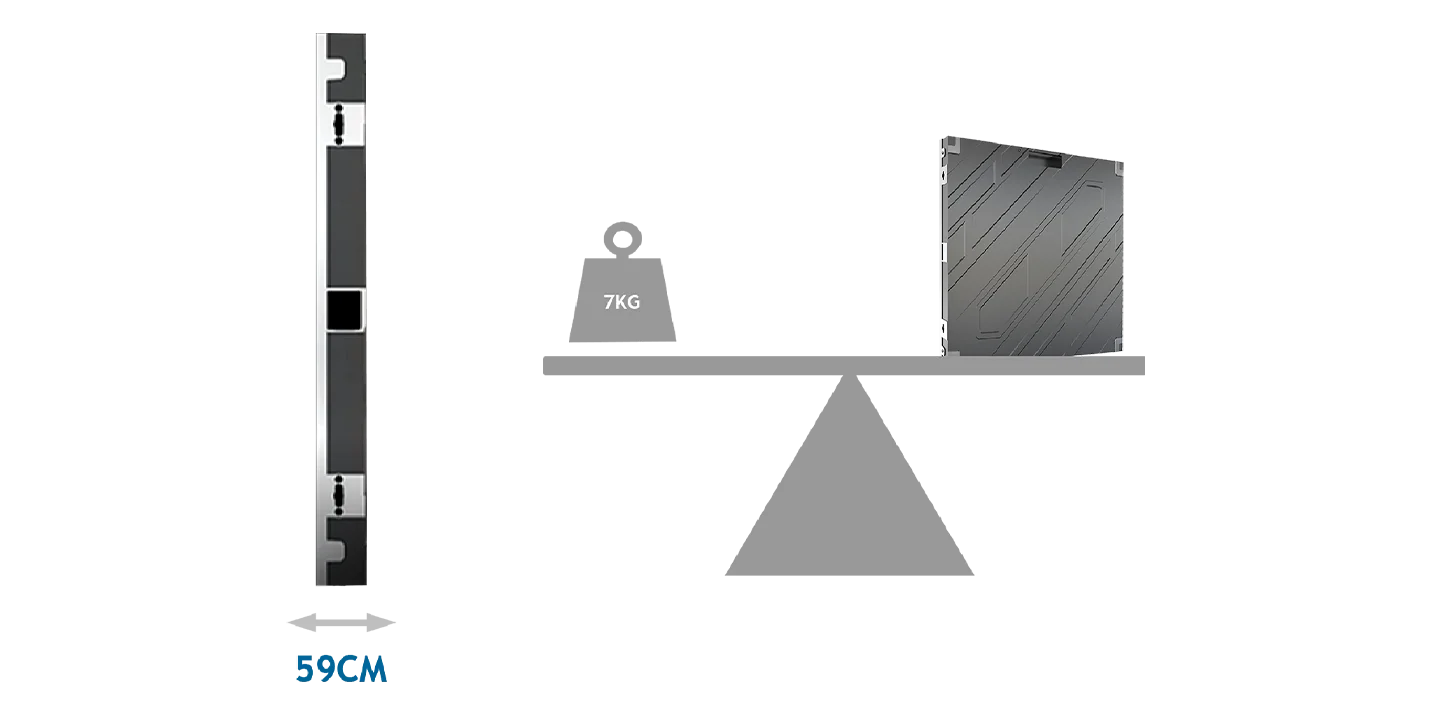

LED is strikingly thin. Suitable in any scenari, shining in any place. What’s more, 90 degree splicing can be assembled into multiple wonderful shapes.


Color Precision

Inteligent adiustment is made through color precision management technology to match the color gamut range of the display with the source image.
Highly reproduce natural scenes andachieve high-fidelity colors.


Multiple Installation

With Die-casting Aluminum designs, Fl-A LED display support multiple installation, including wall-mounted.
frame installation and hanging installation, suitable for every kind of application.


Specification

Integrated solutions provider dedicated to LED product development

Product modelFI640-1.25FI640-1.53FI640-1.86FI640-2FI640-2.5
Pixel ConfigurationSMD1010SMD1010SMD1515SMD1515SMD2020
Pixel pitch1.25mm1.53mm1.86mm2mm2.5mm
Pixel density/m²640,000422,500288,906250,000160,000
Brightness≥500nit≥500nit≥500nit≥800nit≥1000nit
Weight7.57.57.57.57.5
Panel size640*480640*480640*480640*480640*480
Ingress protectionIP31IP31IP31IP31IP31
Viewing angle160° / 160°160° / 160°160° / 160°160° / 160°160° / 160°
Processing depth14bit14bit14bit14bit14bit
Date refresh rate≥3840Hz≥3840Hz≥3840Hz≥3840Hz≥3840Hz
Power consumption (Max/Avg.)580/195W/m²580/195 W/m²580/195 W/m²439/150 W/m²457/153 W/m²

Application Fields

Integrated solutions provider dedicated to LED product development

Command-Center

Corporate-Experience

Industrial-Design

Home-Cinema
