Pixel pitch: P2.6, P2.97, P3.91, P4.81

RD Series

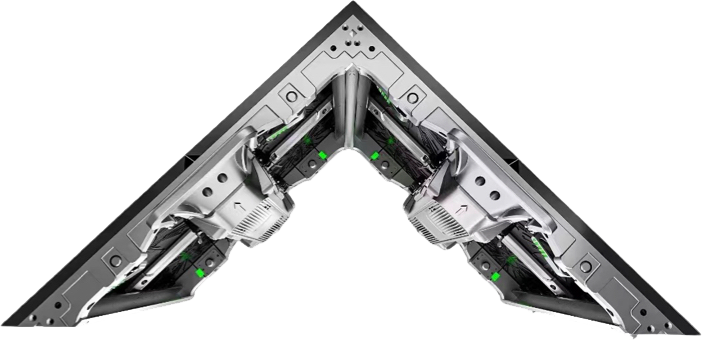

Ultra-lightweight and space-saving, With several core technologies. Innovative structural design, Seamless display & Excellent visual effects, Support right angle installation.

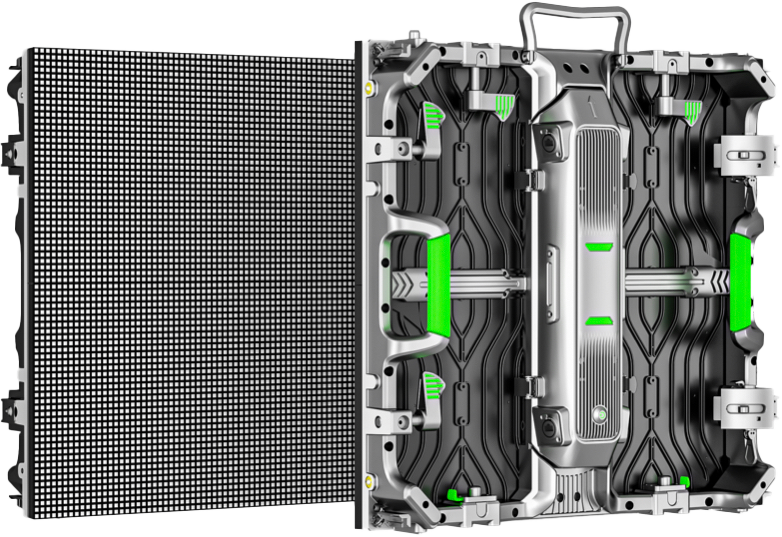

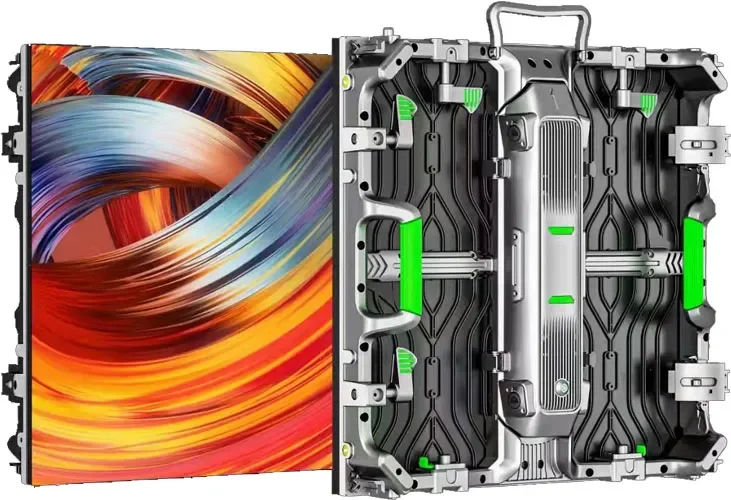

RD Series Rental LED Screen

RD Series Rental LED Display New design incorporates many aesthetic elements. Adopts high-strength die-casting aluminum, only 7.5kg per cabinet. Better performance with high-definition visual display.

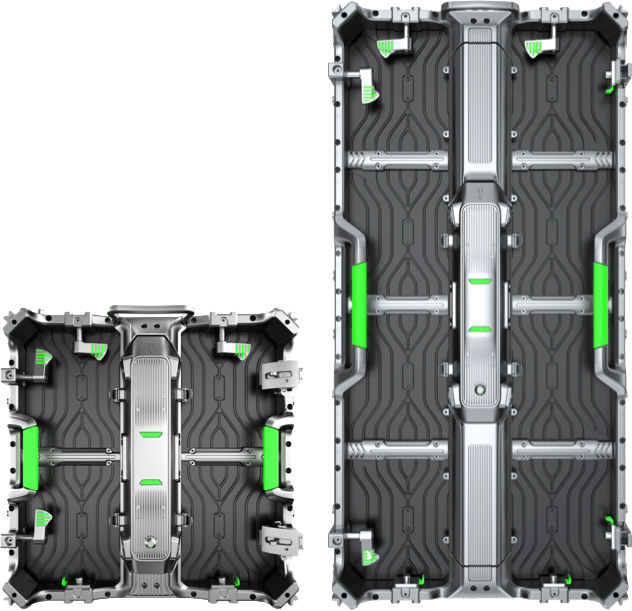

Lightweight and Thin

Portable and good stability with weight of 7.5kg/cabinet and thickness of 80mm. The lightweight cabinet makes the LED display easy to carry, transport, and install, saving a good amount of money on your labor costs.

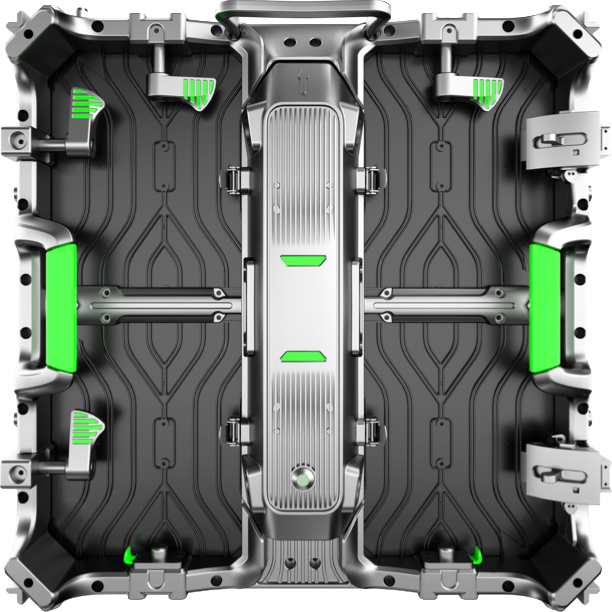

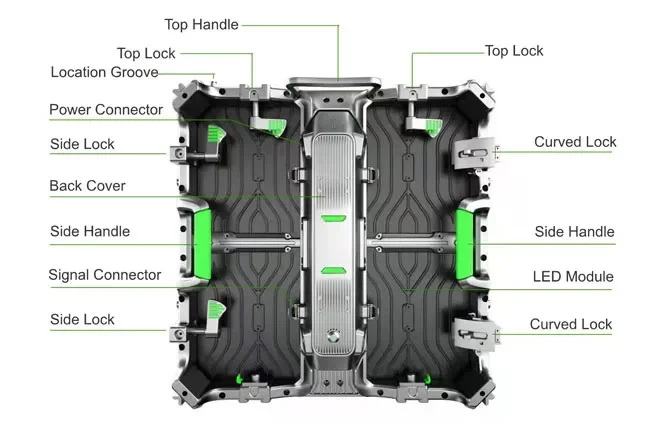

Perfect Structure

Thrv has the domestic top design team, and the design innovation has its own unique philosophy, with a number of core technologies. Innovative structural design  and avant-garde body lines give you an extraordinary experience

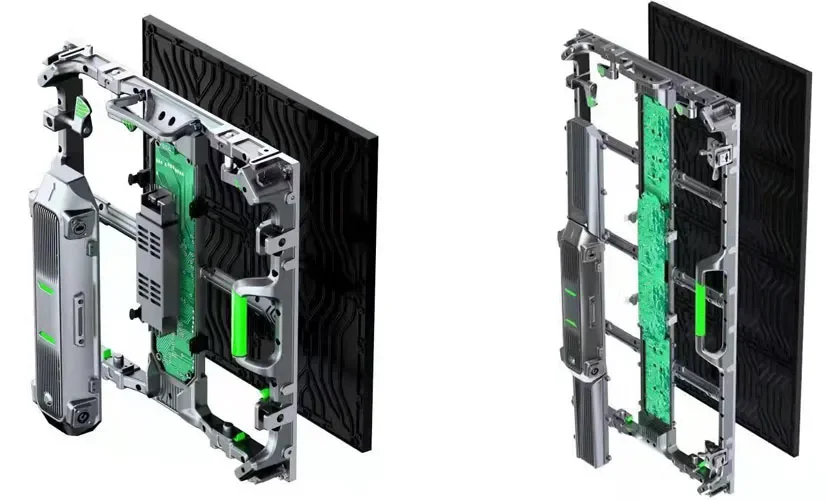

Detachable Back Cover

Adopts Optimized Control Box with Quick removable without any tools optional. the back box (includes power supply and control cards) is removable quickly for replacement and maintenance.

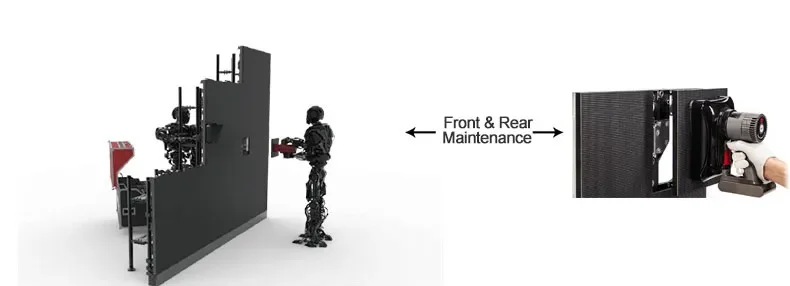

Front & Rear Maintenance

RD Series Rental LED Display is a dual maintenance product, not only 100% front accessible but also can do rear service. The LED panels are magnetic and can be removed by tools from the front side in 5 seconds. Easy and convenient, saving your cost and labor.

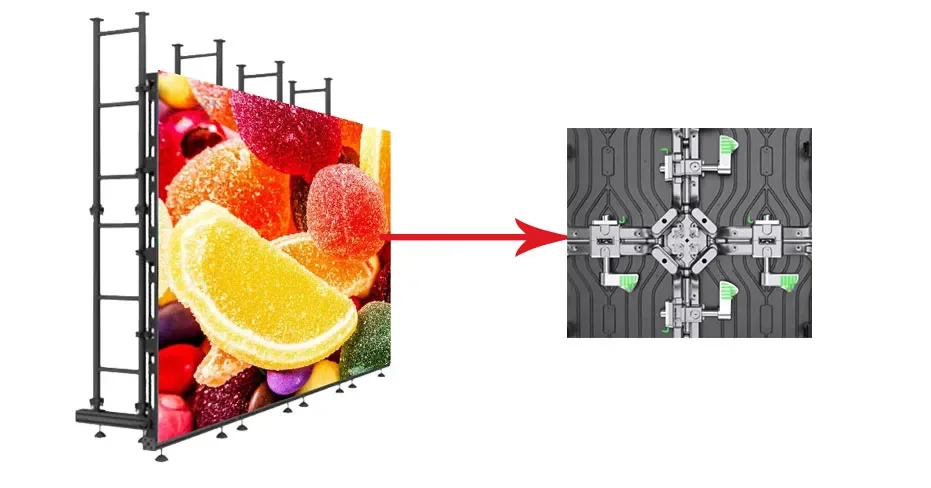

Seamless Display and Better Visual Effects

High precision aluminum cabinet frame makes seamless splicing image and video display, offering you the perfect visual experience you desire from any angle. The picture quality confronts viewers with an entirely new sensory experience.


Specification

Integrated solutions provider dedicated to LED product development

Product modelRD-2.6RD-2.97RD-3.91RD-4.81
Pixel ConfigurationSMD1415SMD1415SMD1921SMD1921
Pixel pitch2.6mm2.97mm3.91mm4.81mm
Pixel density/m²147,456112,89665,53643,264
Brightness≥800nit(indoor), ≥4500nit(outdoor)≥800nit(indoor), ≥4500nit(outdoor)≥700nit(indoor), ≥4500nit(outdoor)≥700nit(indoor), ≥4500nit(outdoor)
Weight7.5/14kg7.5/14kg7.5/14kg7.5/14kg

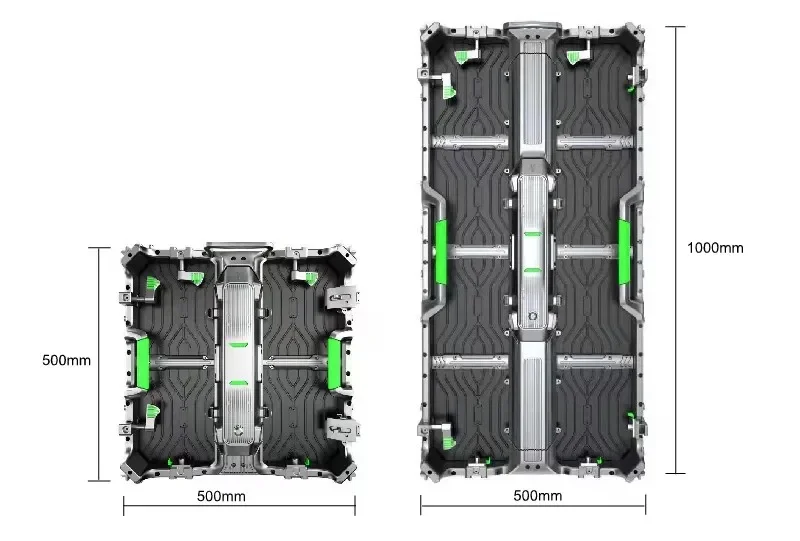

Panel size500*500/1000*87mm500*500/1000*87mm500*500/1000*87mm500*500/1000*87mm
Ingress protectionIP20(indoor), IP65(outdoor)IP20(indoor), IP65(outdoor)IP20(indoor), IP65(outdoor)IP20(indoor), IP65(outdoor)
Viewing angle140° / 120°140° / 120°140° / 120°140° / 120°
Processing depth14bit16bit16bit16bit
Date refresh rate≥3840Hz≥3840Hz≥3840Hz≥3840Hz
Power consumption (Max/Avg.)640/210W/m²640/210W/m²640/210W/m²640/210W/m²

Application Fields

Integrated solutions provider dedicated to LED product development

Concerts

Live Tour

Broadcasting

Events
