Pixel pitch: P1.95, P2.6, P2.9, P3.9

RF Series

RF Innovation Series Rental LED display use high-quality SMD LED. Compared to other rental LED display in market, it’s prominent by the fine pixel pitch, high brightness, low power consumption and so on.

Features
Specification
Application Fields
Related Case

Vibrant Color

RF INNOVATION was inspired by devasting effect of storm just like the performance of this LED display, containing a riot of color, grabbing and engrossing your audience.

Excellent Performance

High refresh rate reaching 3840HZ is able to performance every type of content vividly and picturesquely.

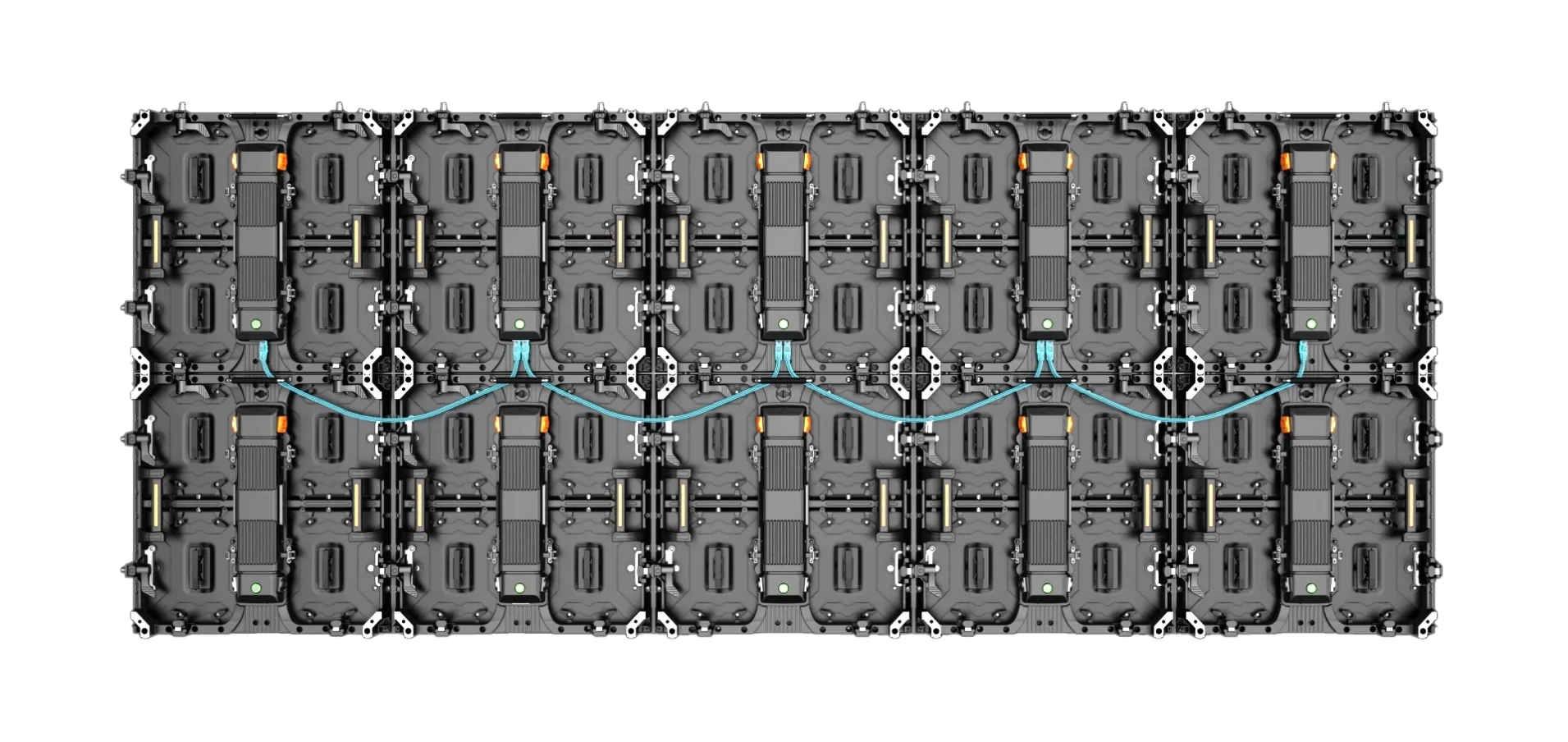

Shaped Splicing and Angle Adjustable

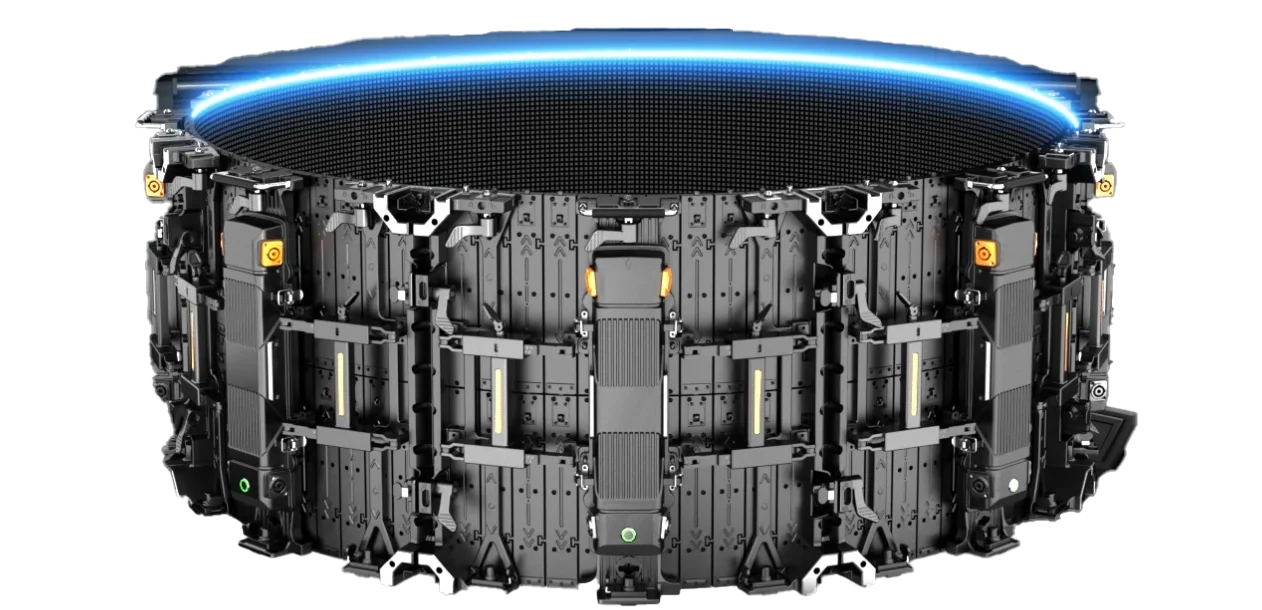

Agile to transform into manifold shapes, easy to meet different place demand. High precision angle lock ±6°, ±3°,0°,can be spliced into curved surface, straight screen, circle screen.

Exquisite Craftsmanship

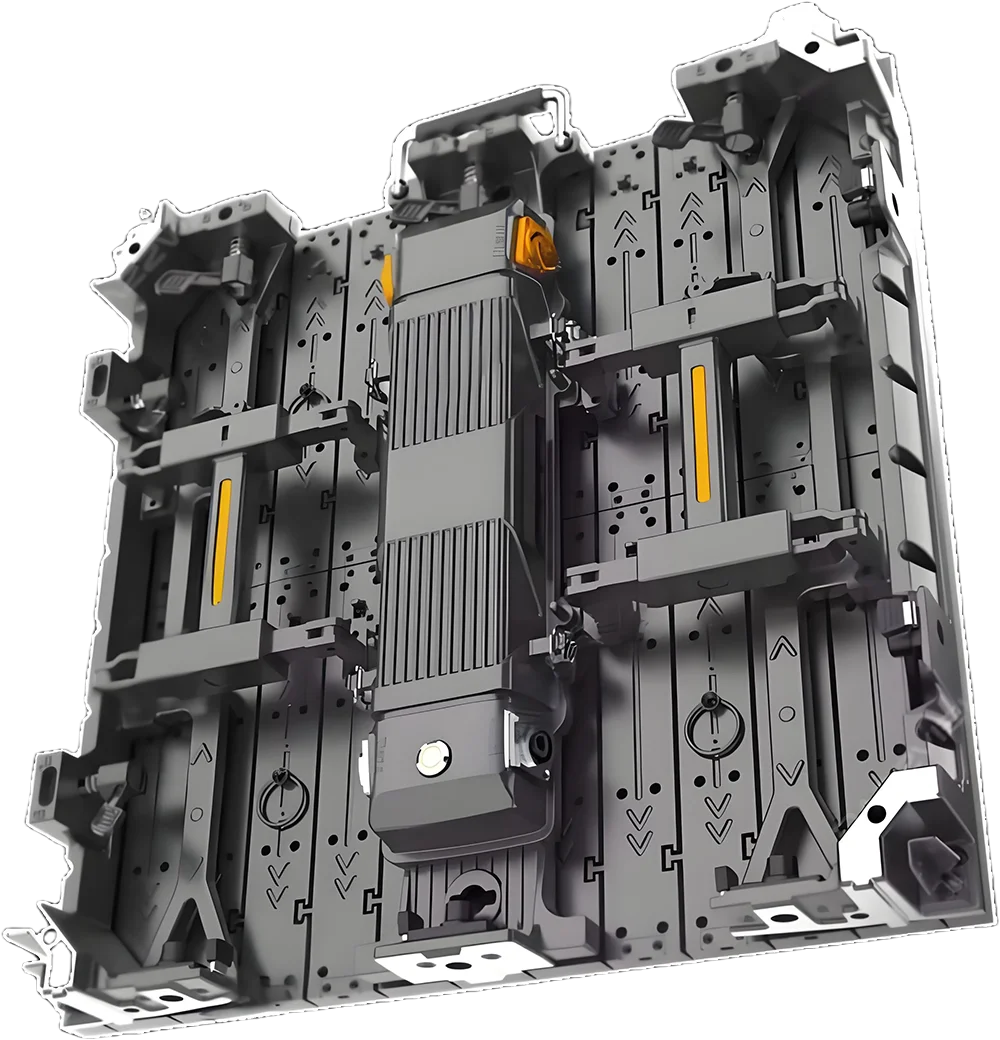

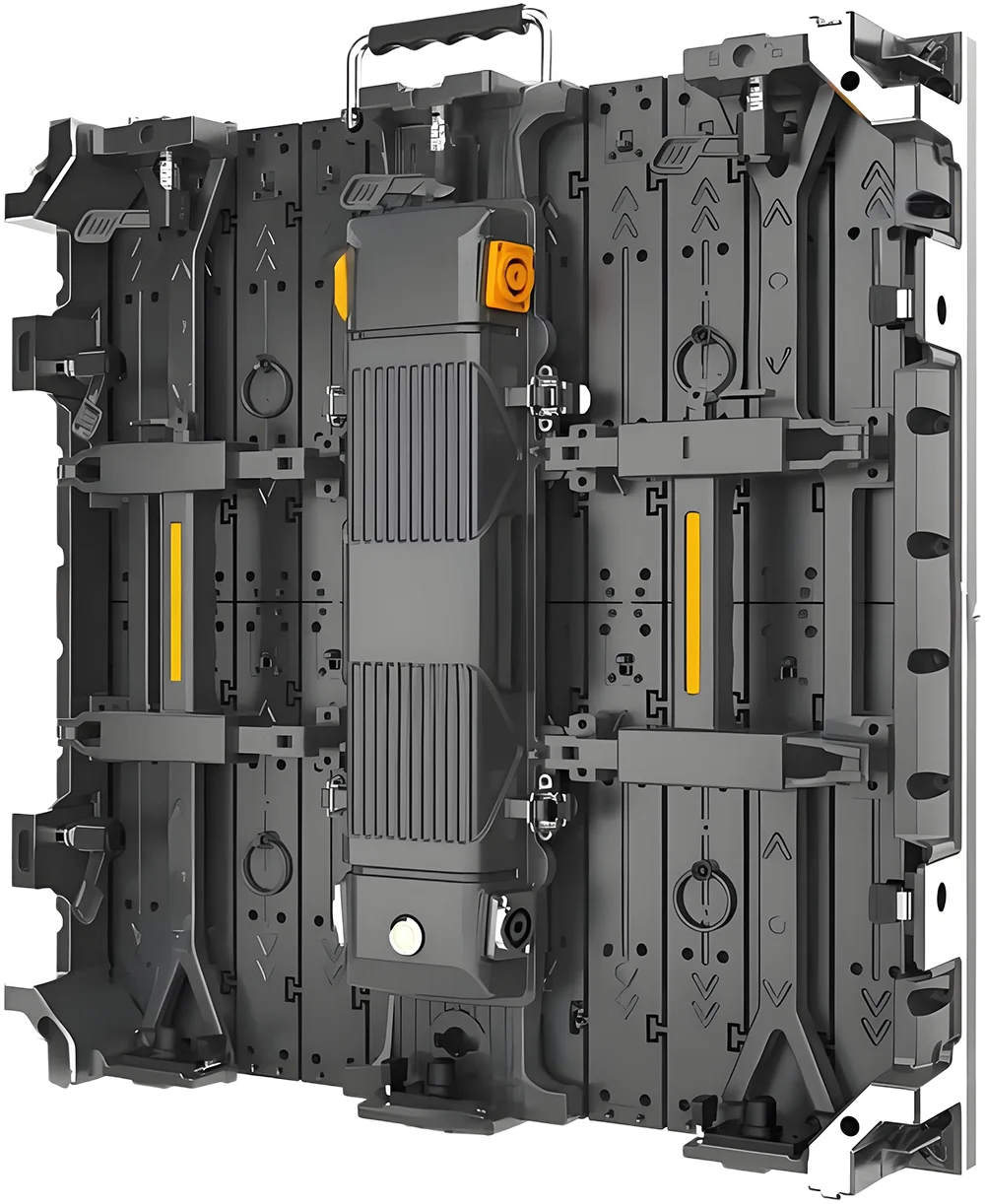

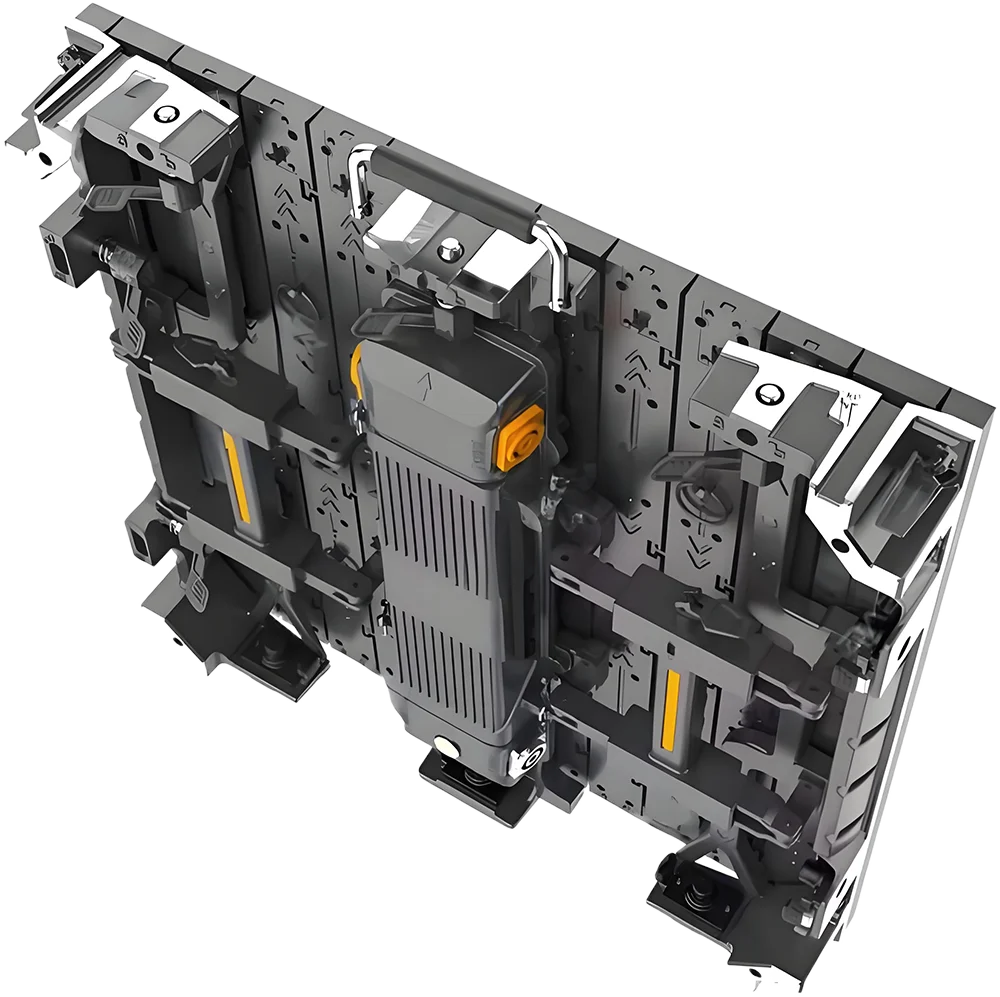

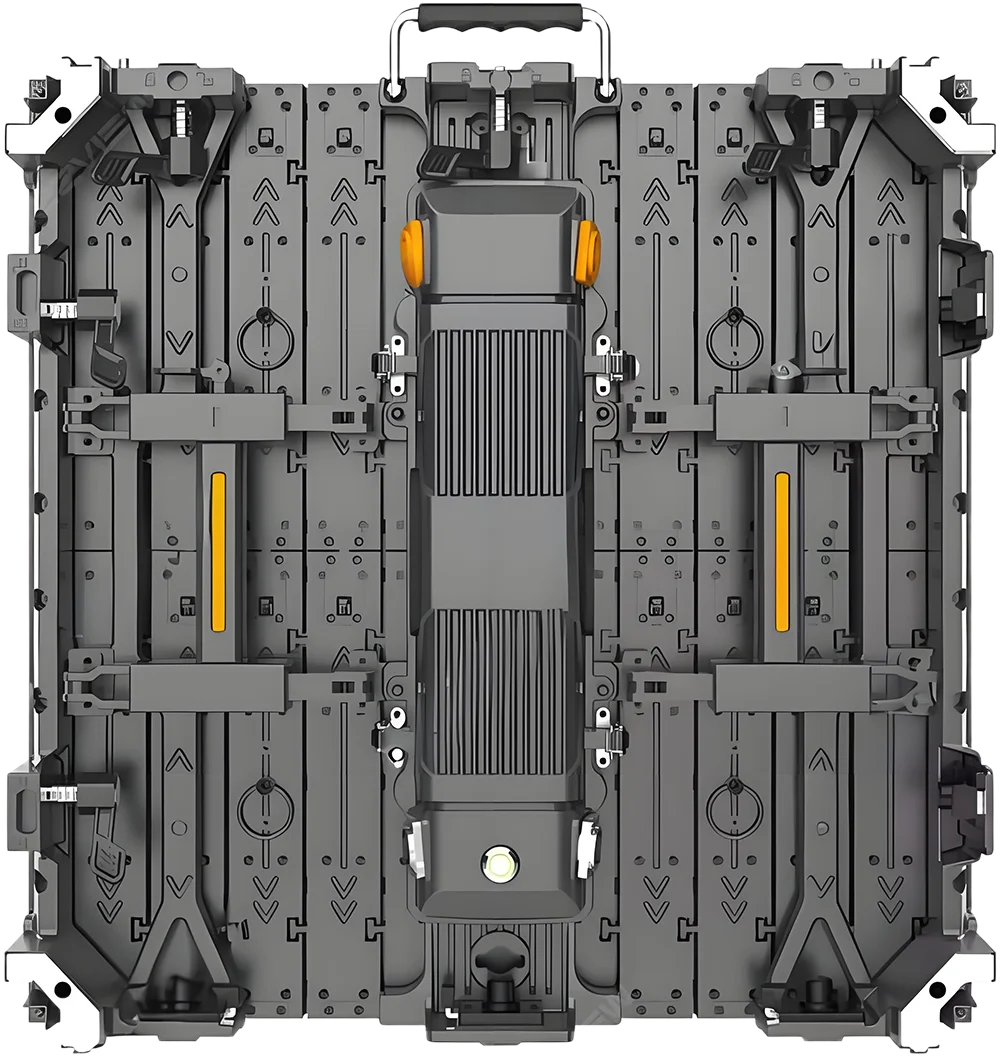

Super slim Die-casting Aluminum cabinet, including 500*500 and 500*1000 sizes, makes the LED screen more fashion and gorgeous. Module front and rear maintenance support fast maintenance.

Specification

Integrated solutions provider dedicated to LED product development

Product modelRF-1.95RF-2.6RF-2.9RF-3.9
Pixel ConfigurationSMD1415SMD1415SMD1415SMD1415
Pixel pitch1.95mm2.6mm2.9mm3.9mm
Pixel density/m²262,144147,456112,89665,536
Brightness≥800nit(indoor), ≥4000nit(outdoor)≥800nit(indoor), ≥4000nit(outdoor)≥800nit(indoor), ≥4000nit(outdoor)≥800nit(indoor), ≥4000nit(outdoor)
Weight7.8kg7.8kg7.8kg7.8kg
Panel size500*500*87mm500*500*87mm500*500*87mm500*500*87mm
Ingress protectionIP20(indoor), IP65(outdoor)IP20(indoor), IP65(outdoor)IP20(indoor), IP65(outdoor)IP20(indoor), IP65(outdoor)
Viewing angle140° / 120°140° / 120°140° / 120°140° / 120°
Processing depth14bit16bit16bit16bit
Date refresh rate≥3840Hz≥3840Hz≥3840Hz≥3840Hz
Power consumption (Max/Avg.)550/185W/m²550/185W/m²550/185W/m²550/185W/m²

Application Fields

Integrated solutions provider dedicated to LED product development

Exhibition

Ceiling

Events

Live Tour
