Pixel pitch: P2.6, P2.97, P3.91, P4.81

RD Series

Ultra-lightweight and space-saving, With several core technologies. Innovative structural design, Seamless display & Excellent visual effects, Support right angle installation.

Features
Specification
Application Fields
Related Case

Flexible Installation

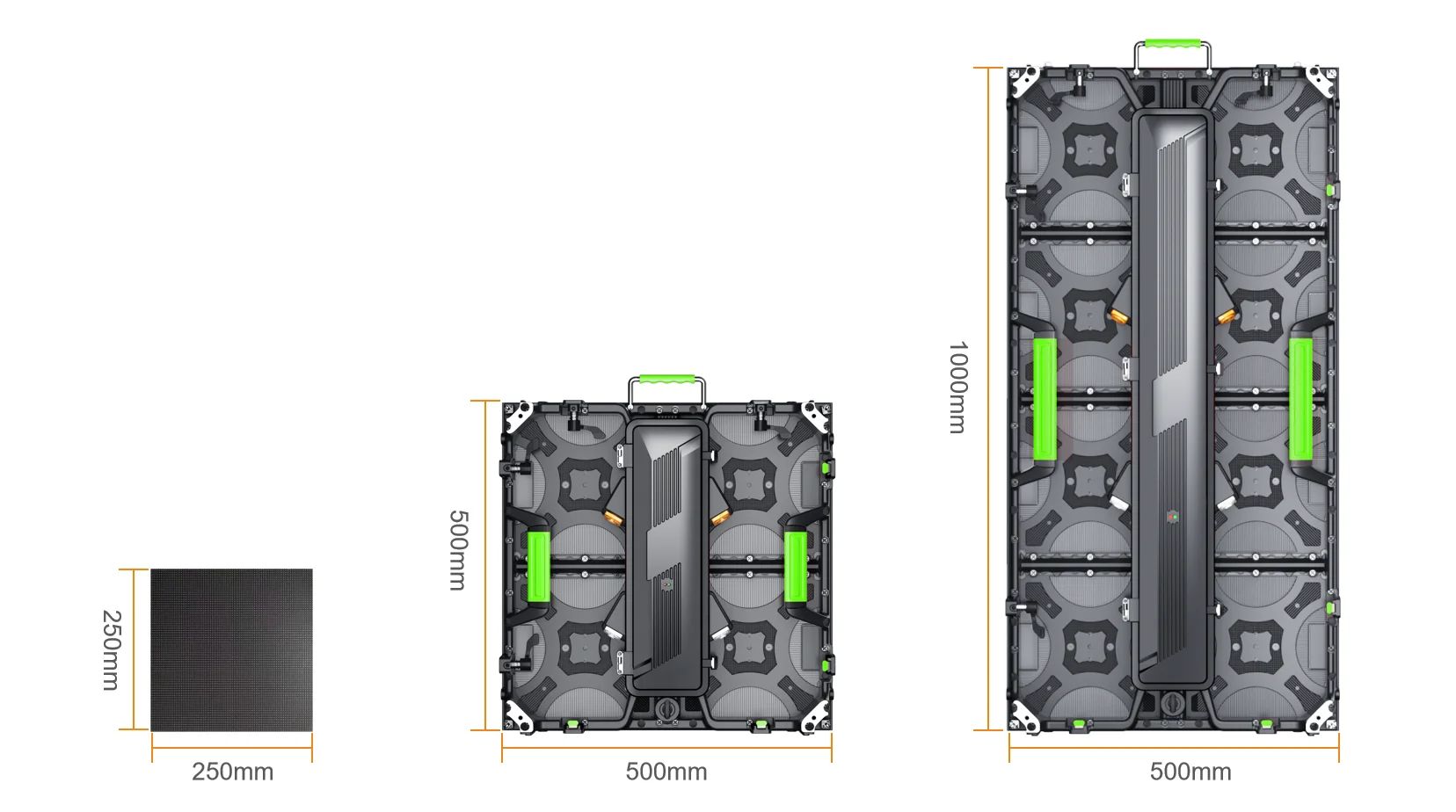

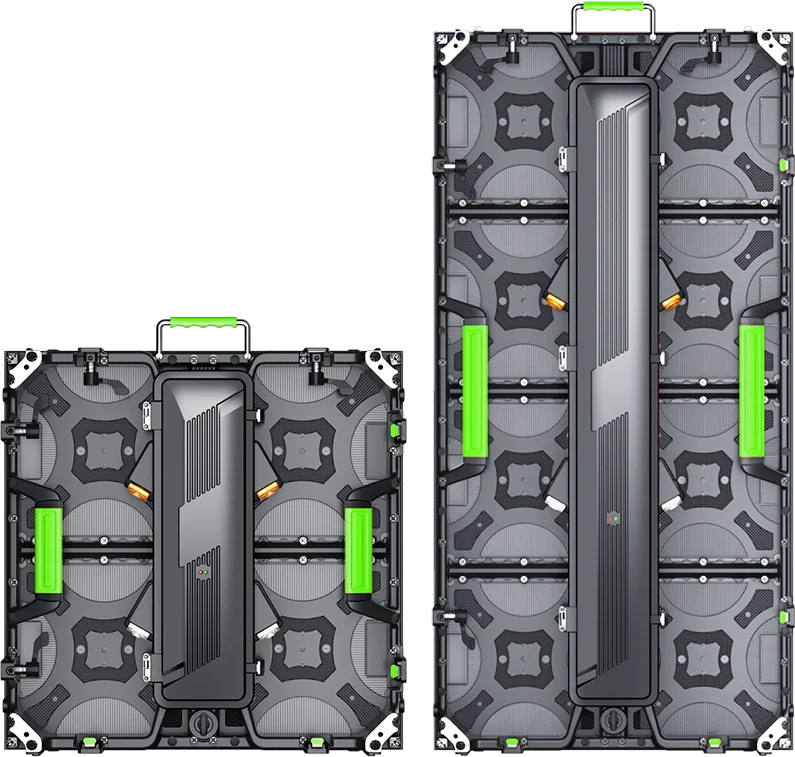

500500 mm and 5001000 mm cabinets can be combined to provide flexibility for various display sizes, more creative for your stage design.

Ultralight But Sturdy

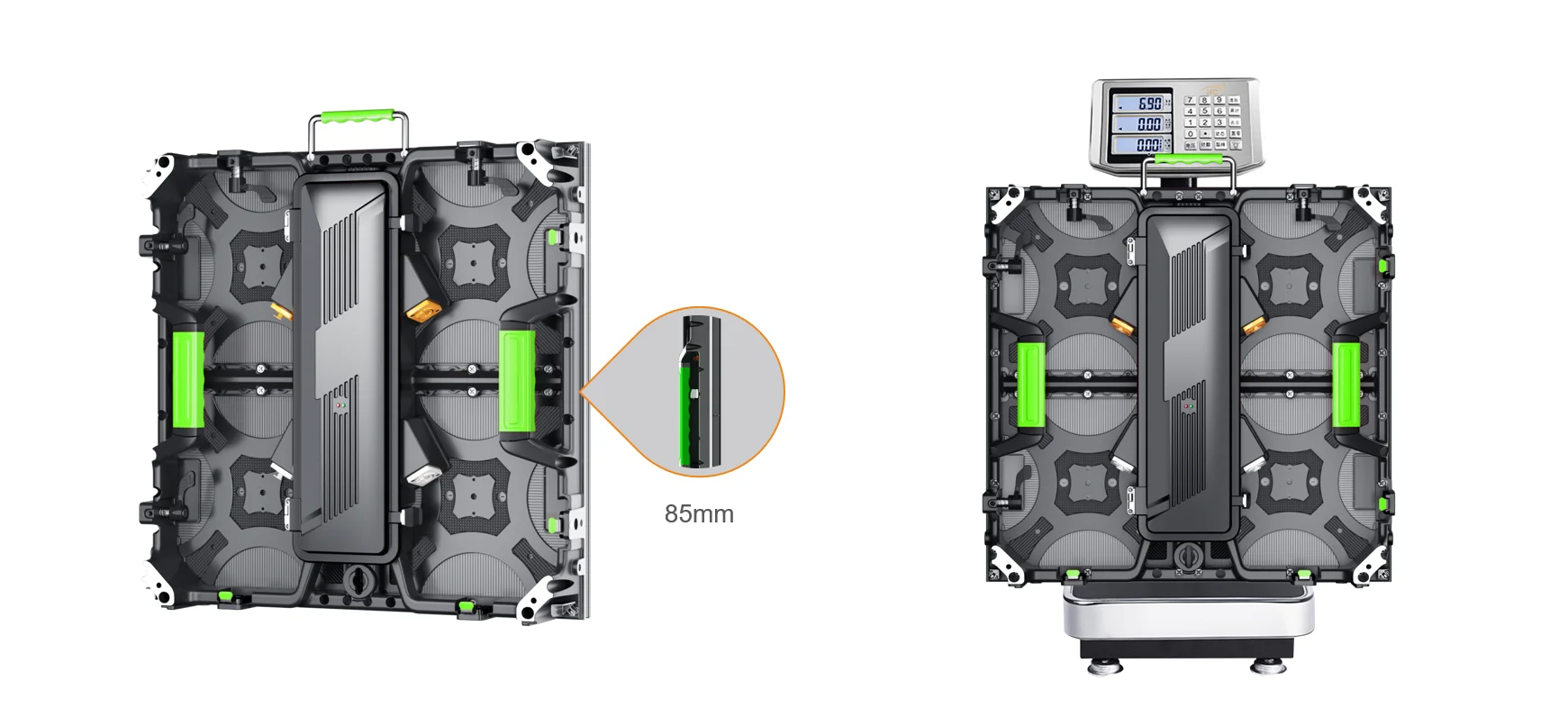

Lightweight cabinet greatly save your labor and transportation cost, 500x500mm indoor cabinets weight 6.9kg only.

Modular Design

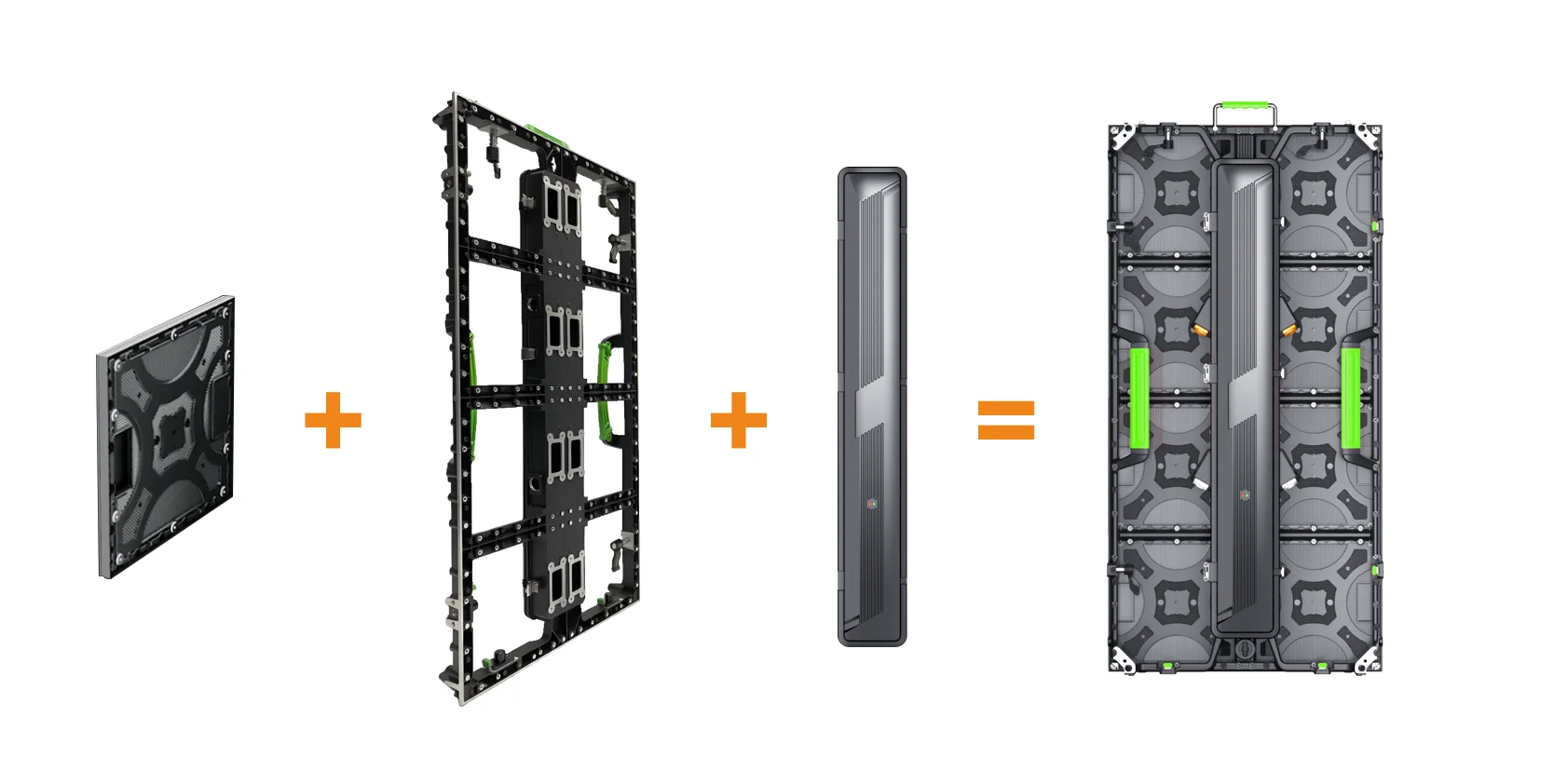

Modules with different pixel pitch can be used on the same cabinet frame and the same control box.

Good Display Effect

High refresh rate display: ≥3840Hz refresh rate, more comfortable viewing, shooting without scanning lines. Standard mask, anti-glare, enhances consistency.

Front & Rear Maintenance

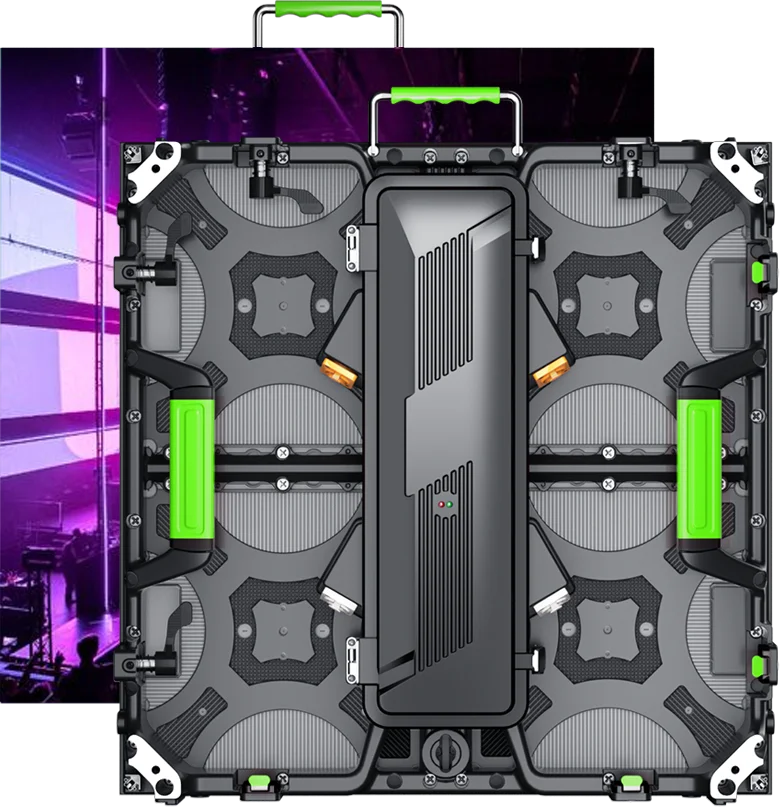

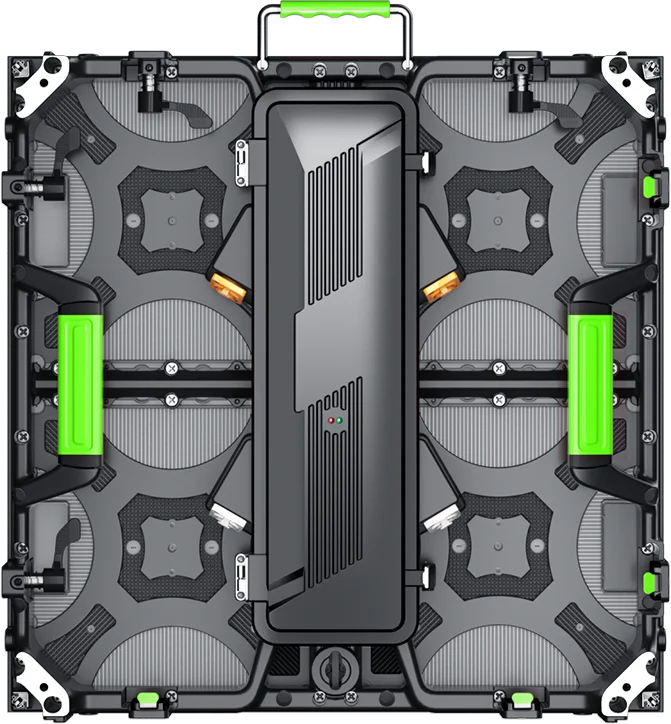

RD Series Rental LED Display is a dual maintenance product, not only 100% front accessible but also can do rear service. The LED panels are magnetic and can be removed by tools from the front side in 5 seconds. Easy and convenient, saving your cost and labor.

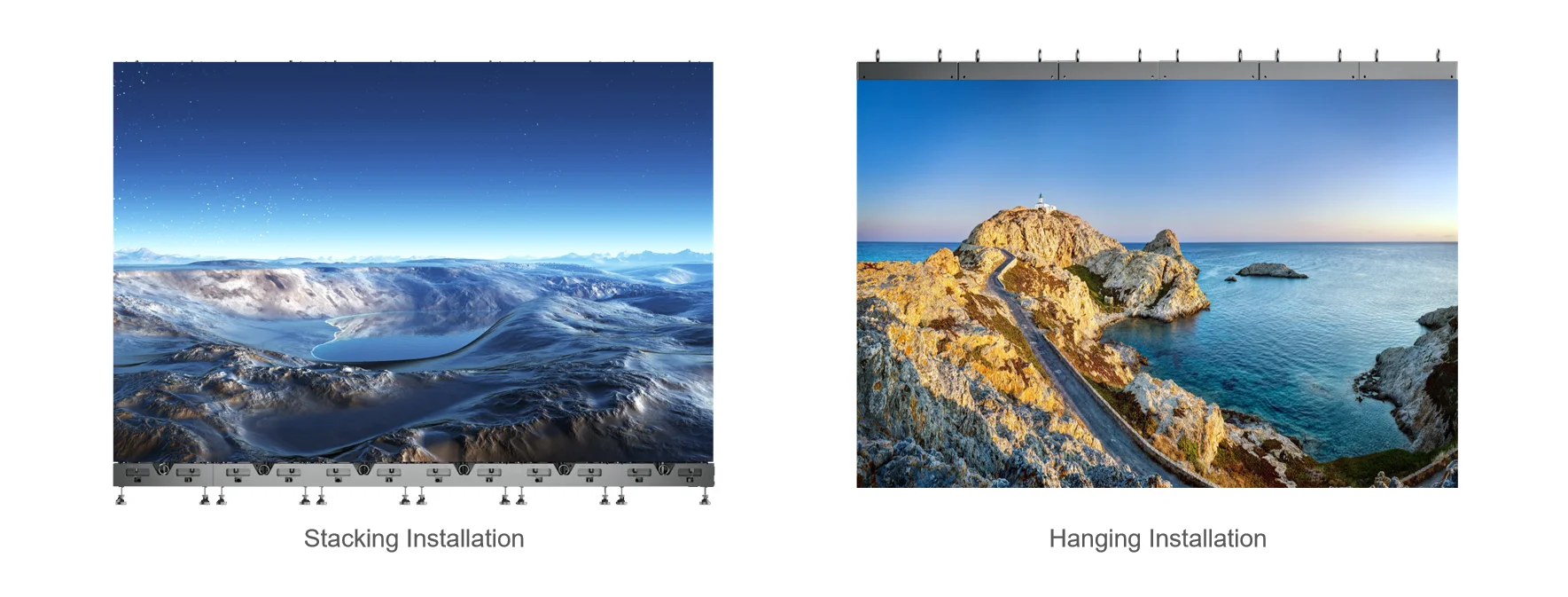

Multiple Installation Methods

Hanging and stacking installation solutions are both available to easily cope with the diverse requirements of the site environment.

Specification

Integrated solutions provider dedicated to LED product development

Product modelRD-2.6RD-2.97RD-3.91RD-4.81
Pixel ConfigurationSMD1415SMD1415SMD1921SMD1921
Pixel pitch2.6mm2.97mm3.91mm4.81mm
Pixel density/m²147,456112,89665,53643,264
Brightness≥800nit(indoor), ≥4500nit(outdoor)≥800nit(indoor), ≥4500nit(outdoor)≥700nit(indoor), ≥4500nit(outdoor)≥700nit(indoor), ≥4500nit(outdoor)
Weight6.9/11.7kg6.9/11.7kg6.9/11.7kg6.9/11.7kg
Panel size500*500/1000*85mm500*500/1000*85mm500*500/1000*85mm500*500/1000*85mm
Ingress protectionIP20(indoor), IP65(outdoor)IP20(indoor), IP65(outdoor)IP20(indoor), IP65(outdoor)IP20(indoor), IP65(outdoor)
Viewing angle140° / 120°140° / 120°140° / 120°140° / 120°
Processing depth14bit16bit16bit16bit
Date refresh rate≥3840Hz≥3840Hz≥3840Hz≥3840Hz
Power consumption (Max/Avg.)640/210W/m²640/210W/m²640/210W/m²640/210W/m²

Application Fields

Integrated solutions provider dedicated to LED product development

Concerts

Live Tour

Broadcasting

Events
