Pixel pitch: P6, P8, P10

Sports Series

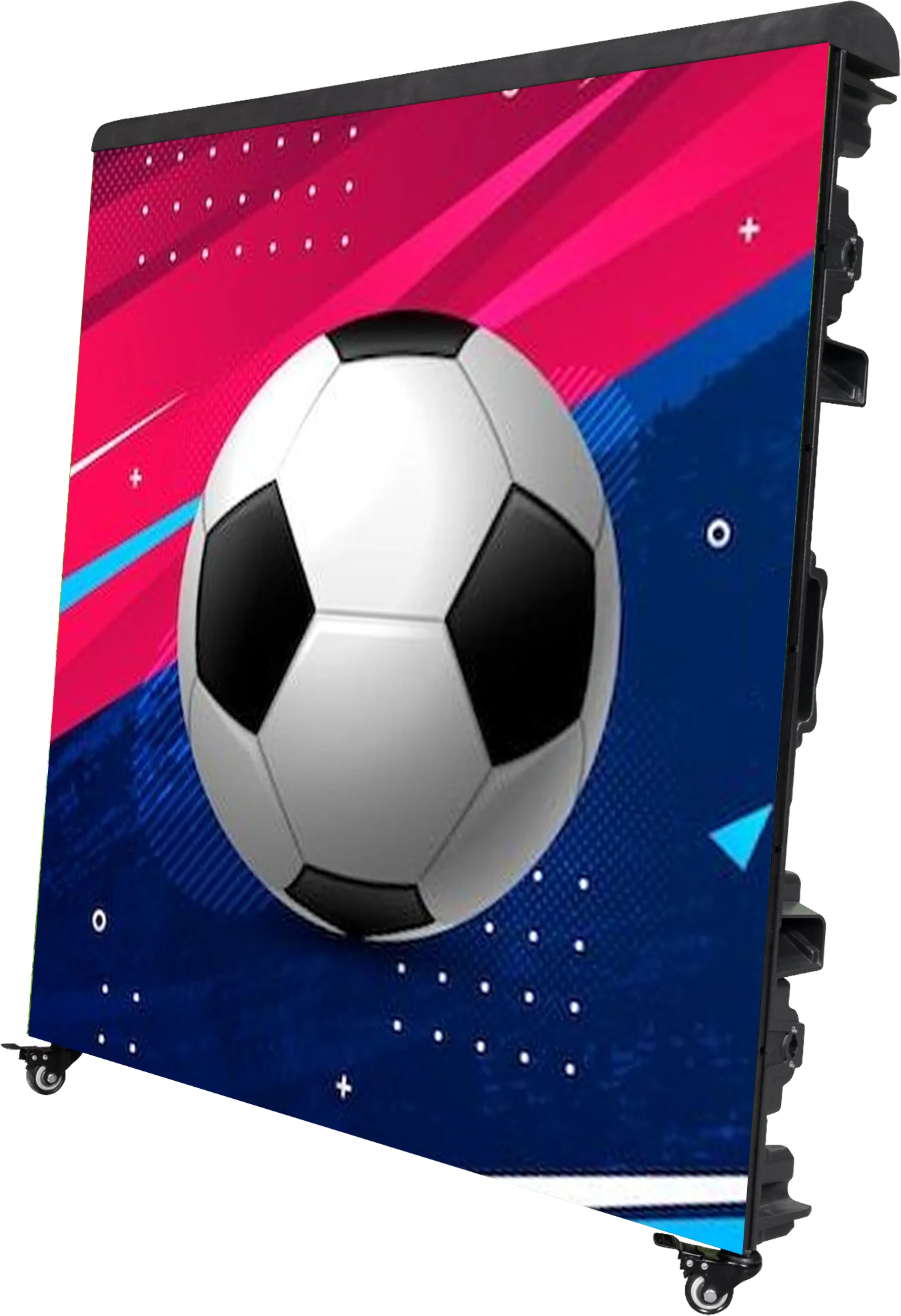

Sports Series perimeter LED Displays are giant LED banner display for stadium applications both outdoor and indoor.They can be installed on one or both sides of the stadium/arena to broadcast the advertising of your sponsors and advertisers. Being modular, they can be mounted on the long side or behind the goalpost on the short side of any sports fields.

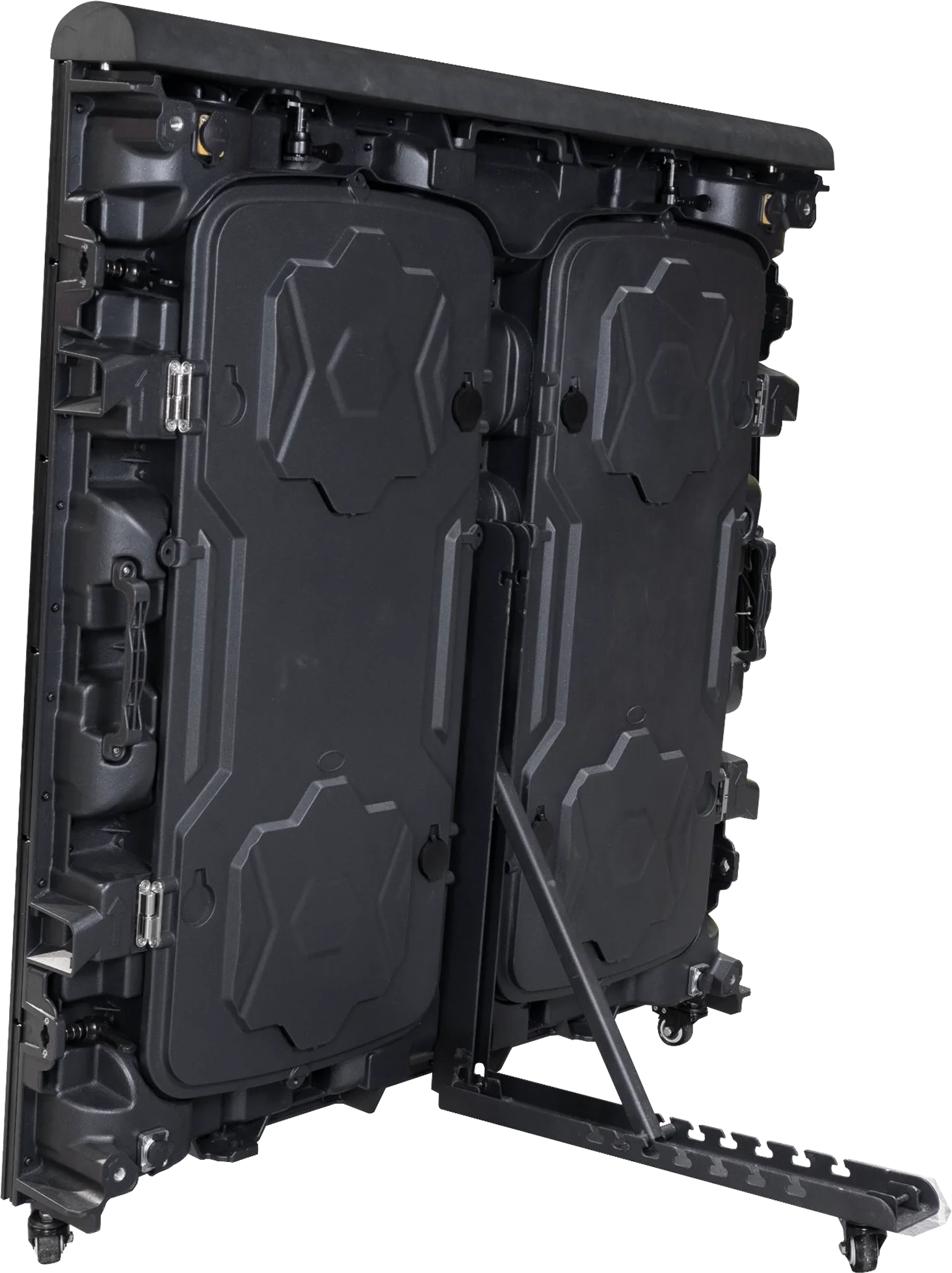

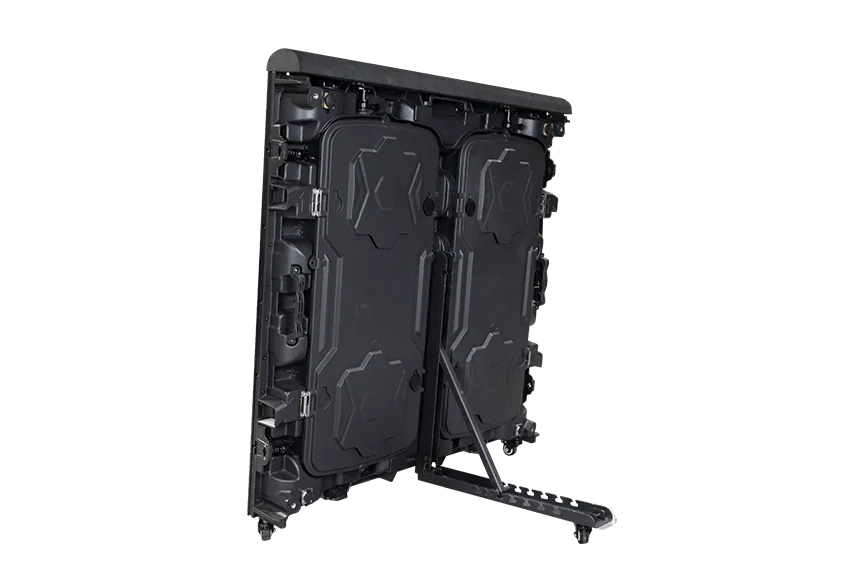

Die Casting Magnesium Cabinet

28Kgs per panel , 30% lighter and normal iron cabinet, saving labor cost and shipping cost; Recyclable and resource-saving; High precision CNC Processing, High Flatness

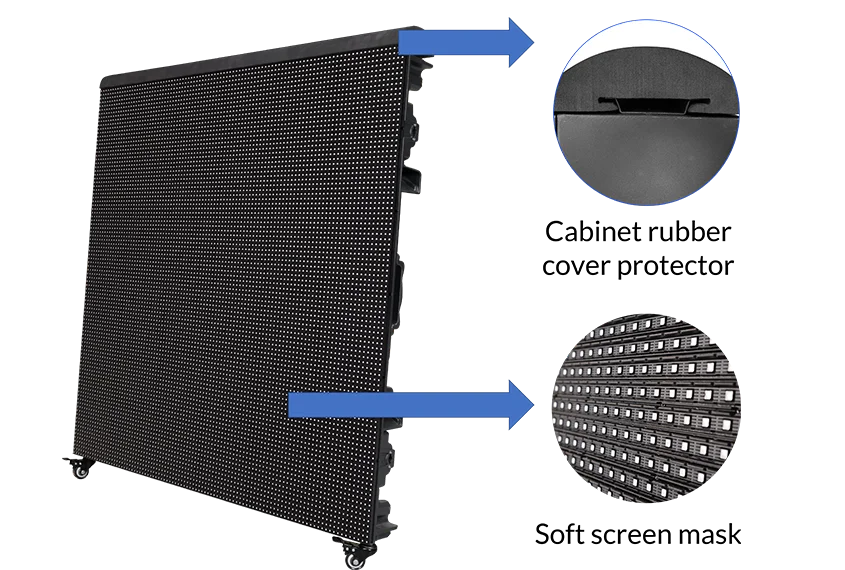

Humanization Design

3-layer slope design soft screen mask, efficient impact buffering and rain draining; cabinet rubber cover protector, it can protect the players from being hurt during the match.

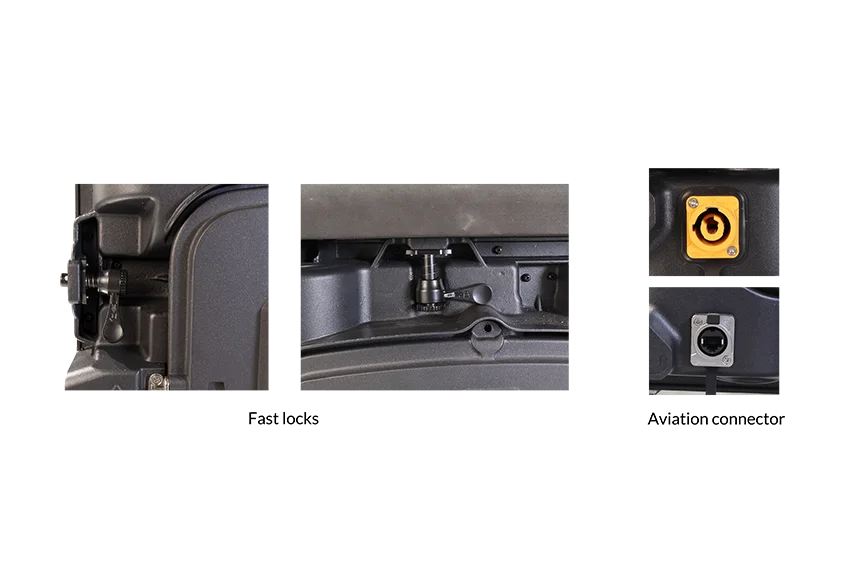

Quick Installation with High Standard Aviation Connector

Saving installation time and aviation connector will ensure the stable and reliable of the screen especially in some important occasions.

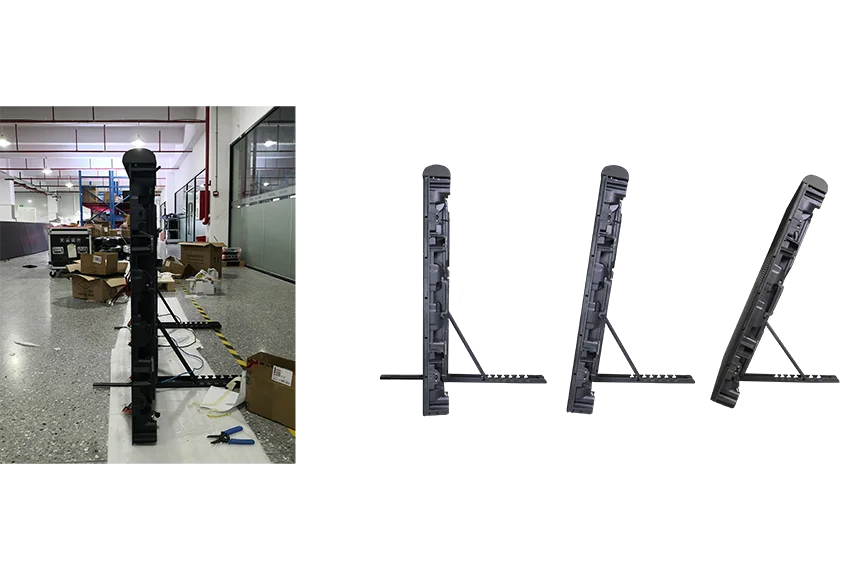

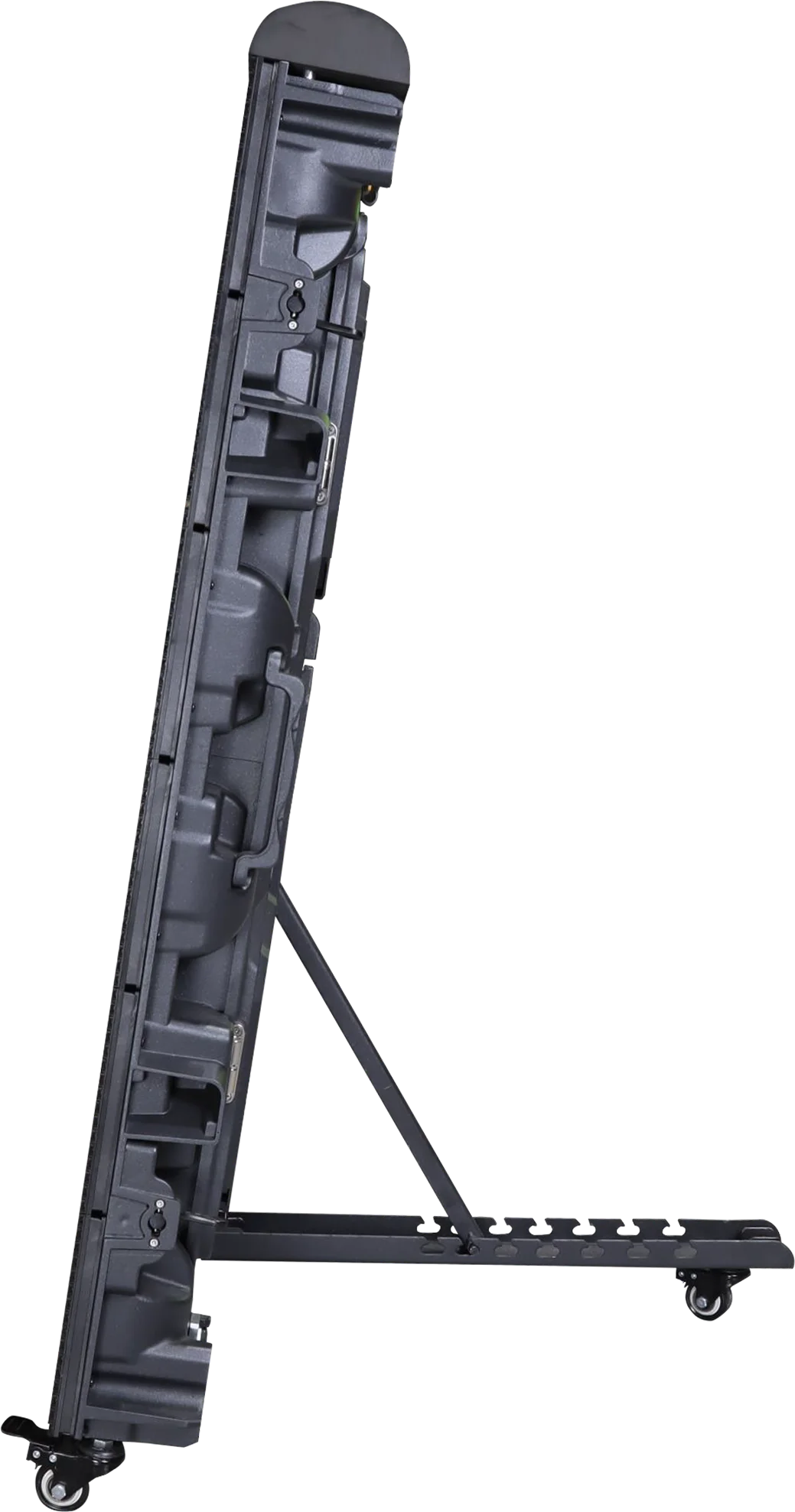

Independent Support Structure, Multi-angle Adjustment

The independent brackets support flexibly (60° ~ 90°) for audience and cameras


Specification

Integrated solutions provider dedicated to LED product development

Product modelSports-6Sports-8Sports-10
Pixel ConfigurationSMD2727SMD2727SMD2727
Pixel pitch6.67mm8mm10mm
Pixel density/m²22,50015,62510,000
Brightness5500-8000nits5500-8000nits5500-8000nits
Weight25kg25kg25kg
Panel size960*960mm960*960mm960*960mm
Ingress protectionIP65IP65IP65
Viewing angle160° / 160°160° / 160°160° / 160°
Processing depth14-16bit14-16bit14-16bit
Date refresh rate≥3840Hz≥3840Hz≥3840Hz
Power consumption (Max/Avg.)800/268(W/m²)800/268(W/m²)800/268(W/m²)

Application Fields

Integrated solutions provider dedicated to LED product development

Sport Stadium

Integrated solution provider dedicated to LED product development
