Pixel pitch: P5, P6.25, P8, P10, P15, P20

TF Series

Transparent led display with high transparency, light weight, smart control, simple operation, high refresh rate, energy-saving and more.

Features
Specification
Application Fields
Related Case

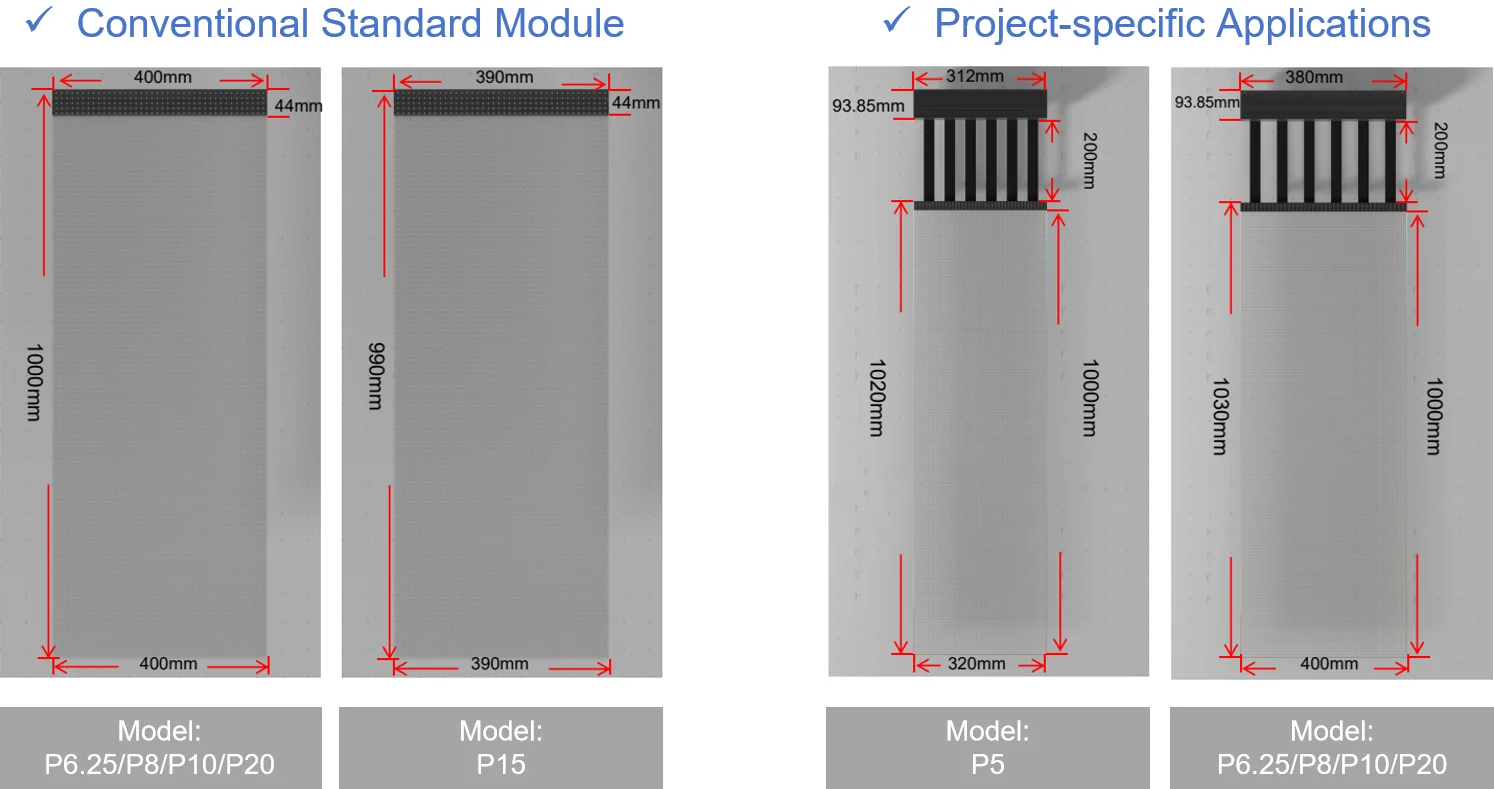

Product Diagram

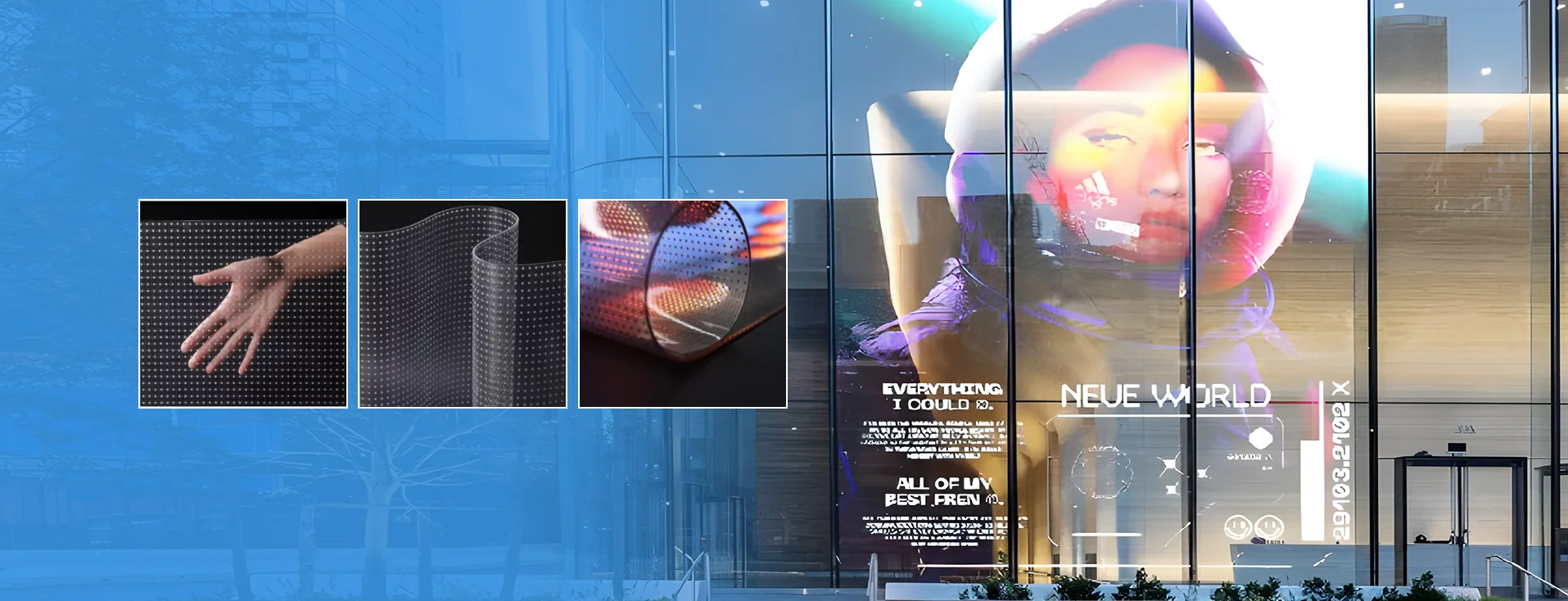

Simplein Stallation

No steel structure is required,just stick the thin screen slightly and connect the power signal.

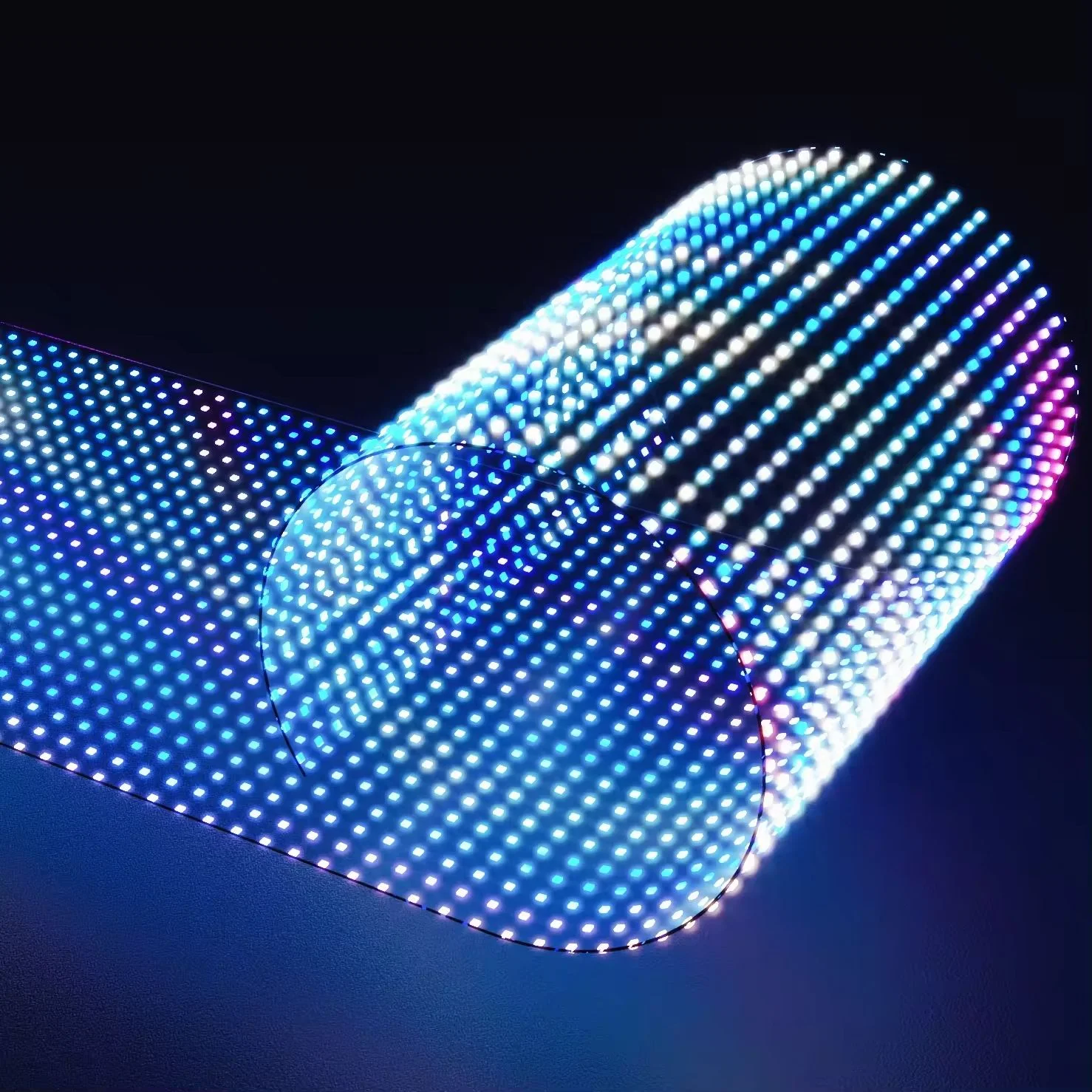

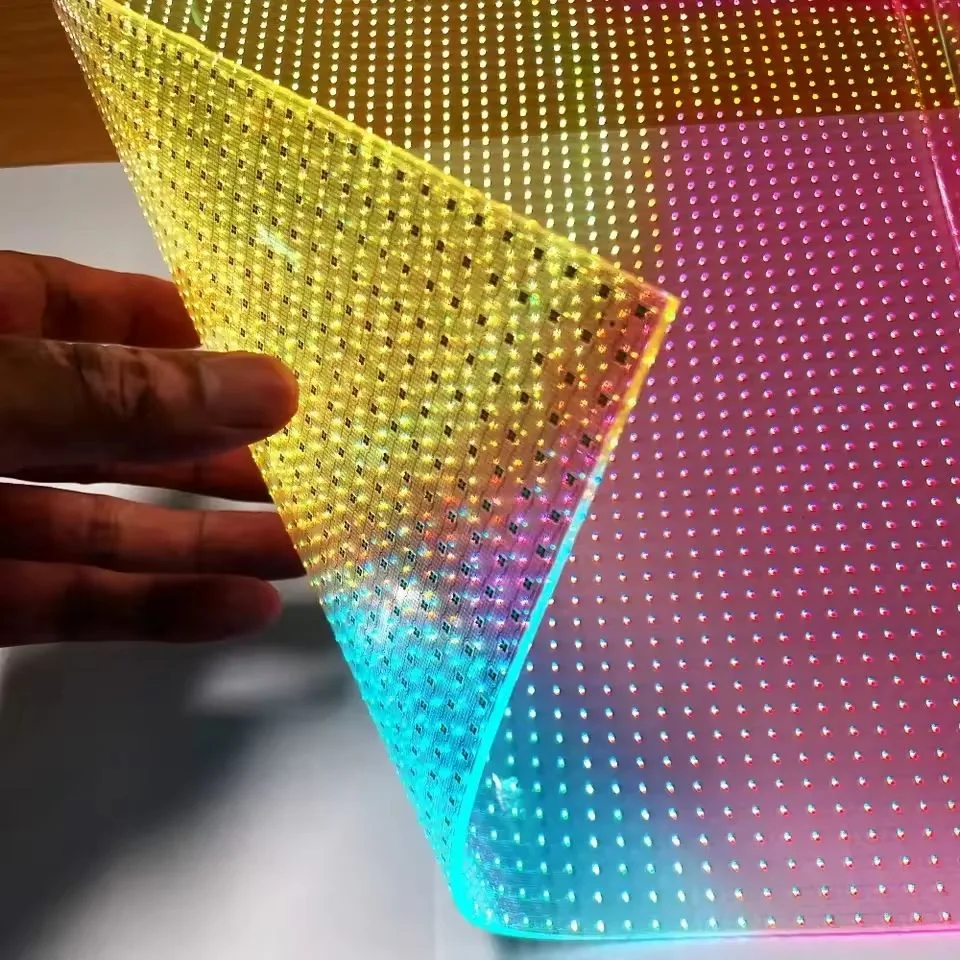

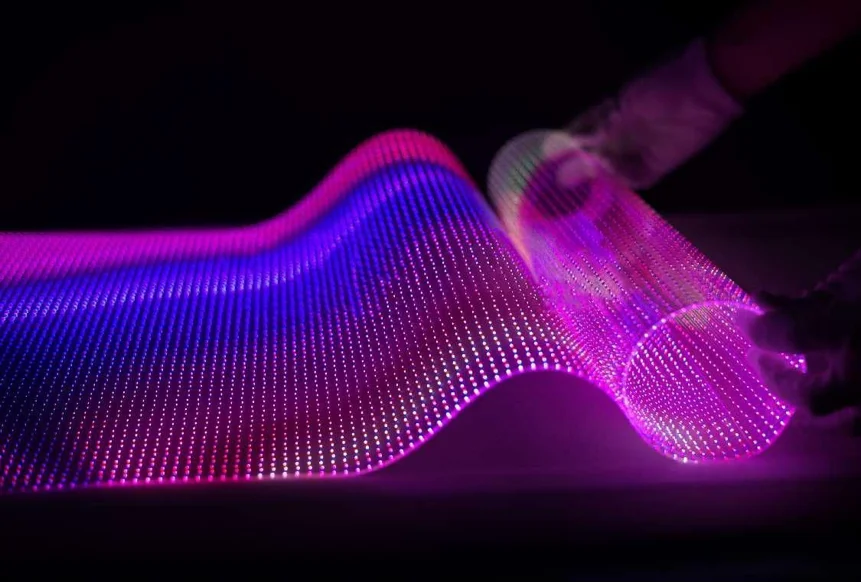

Soft Material

The soft material can be transformed shape and cut to fit the glass perfectly.

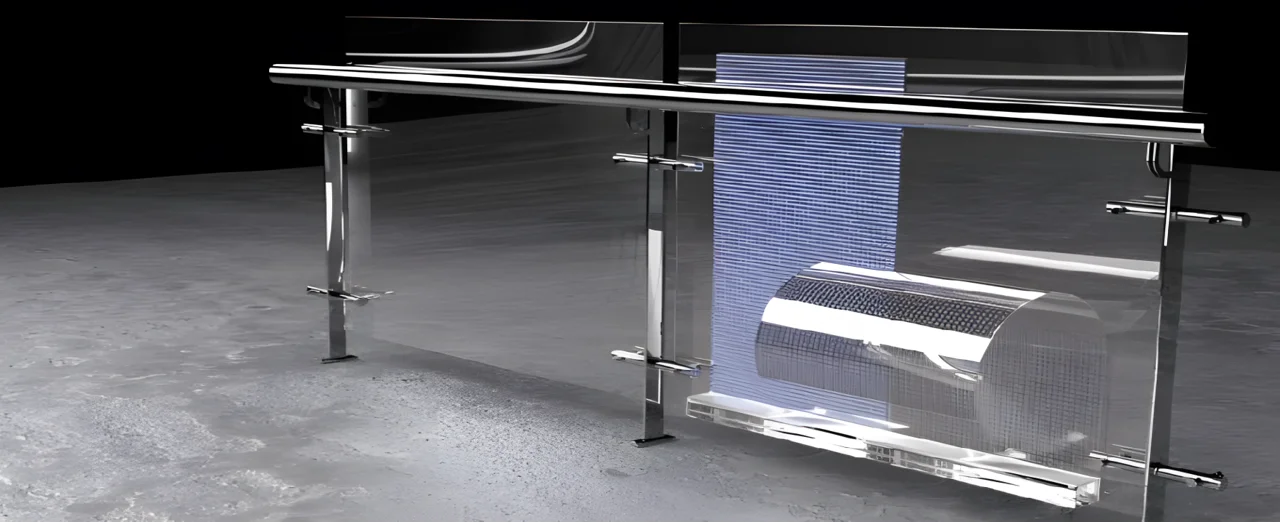

Simplein Stallation

No steel structure is required, just stick the thin screen slightly and connect the power signal.

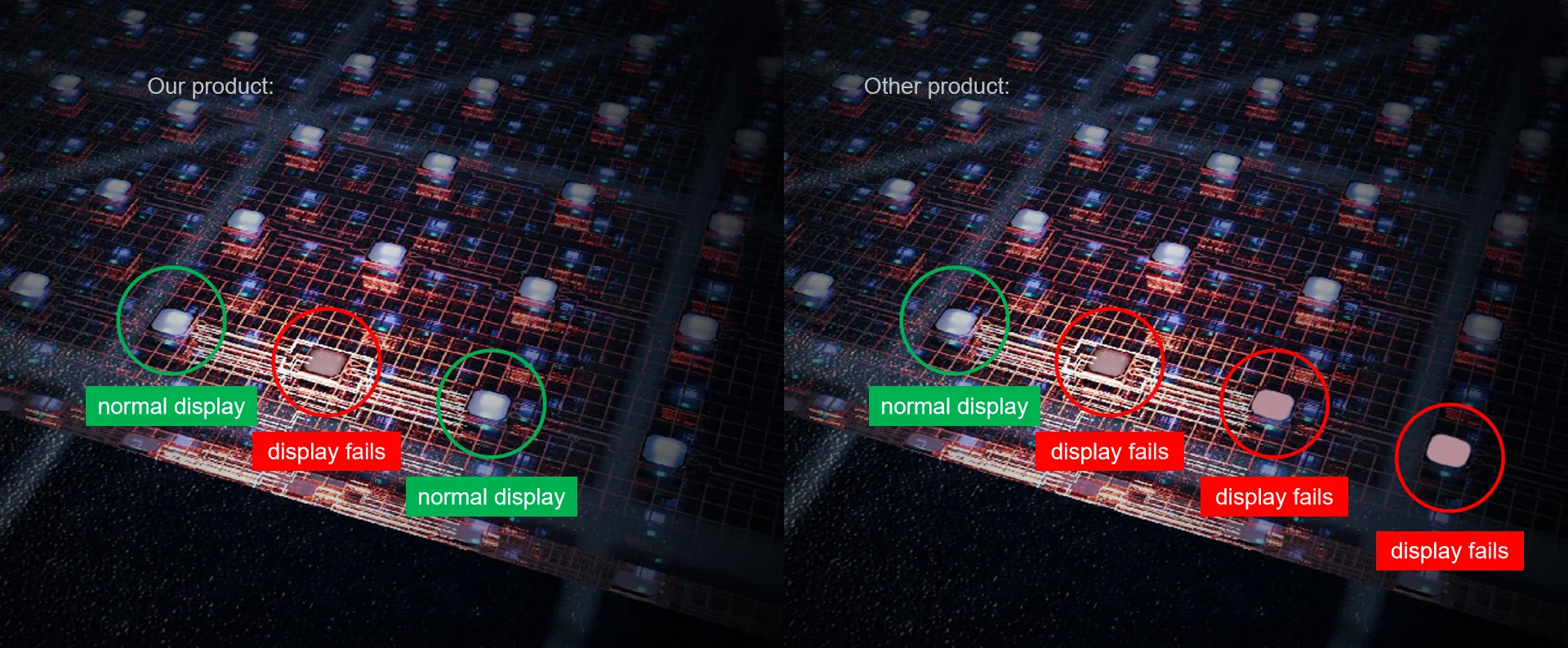

Resume From Breakpoints

Besides LED chips there are no other electronic or device components. It adopts a solution of resuming from breakpoints, so that if one point fails, it will not impact the normal display of other chips.

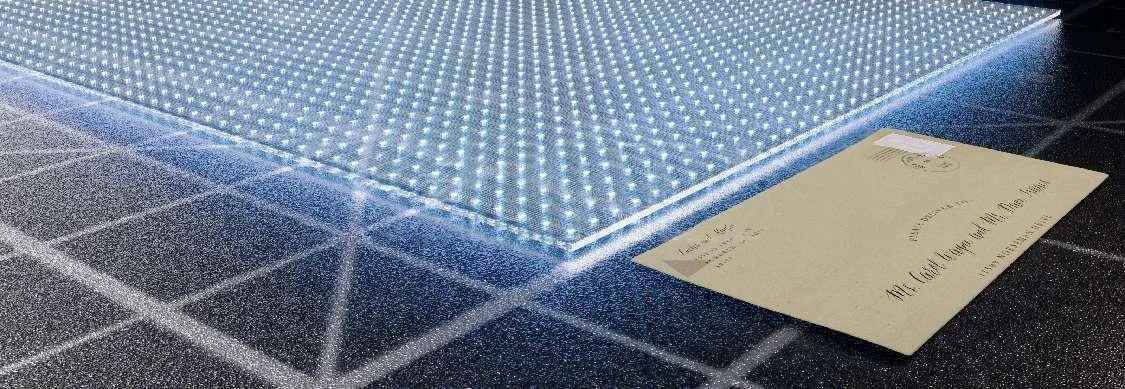

Safe And Beautiful

No components on the screen, hidden power supply, safe and reliable, clean and beautiful.

Specification

Integrated solutions provider dedicated to LED product development

Product modelTF-5TF-6.25TF-8TF-10TF-15TF-20
Pixel ConfigurationRee1313Ree1313/2121Ree1313/2121Ree1313/2121Ree2121Ree2121
Pixel pitch5mm6.25mm8mm10mm15mm20mm
Pixel density/m²40,00025,62515,62510,0004,3562,500
Brightness2500nits2000/4000nits2000/4000nits2000/4000nits2000-4000nits2000-4000nits
Weight2kg1.3kg1.3kg1.3kg1.3kg1.3kg
Panel size1000*320mm1000*400mm1000*400mm1000*400mm990*390mm1000*400mm
Ingress protection––––––
Viewing angle160° / 160°160° / 160°160° / 160°160° / 160°160° / 160°160° / 160°
Processing depth14-16bit14-16bit14-16bit14-16bit14-16bit14-16bit
Date refresh rate≥3840Hz≥3840Hz≥3840Hz≥3840Hz≥3840Hz≥3840Hz
Power consumption (Max/Avg.)600/200W/m²600/200W/m²600/200W/m²600/200W/m²600/200W/m²600/200W/m²

Application Fields

Integrated solutions provider dedicated to LED product development

Curved Glass

Building Fasade

shopping mall

Premium Retail
